USED 2011 KIWA KNH-426X

Overview
Manufacturer:
KIWA
Model:
KNH-426X
Year:
2011
Stock #:
13376
Status:
For Sale
Description

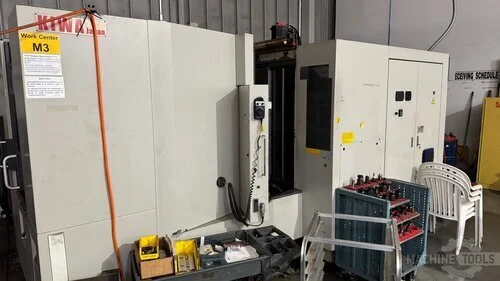

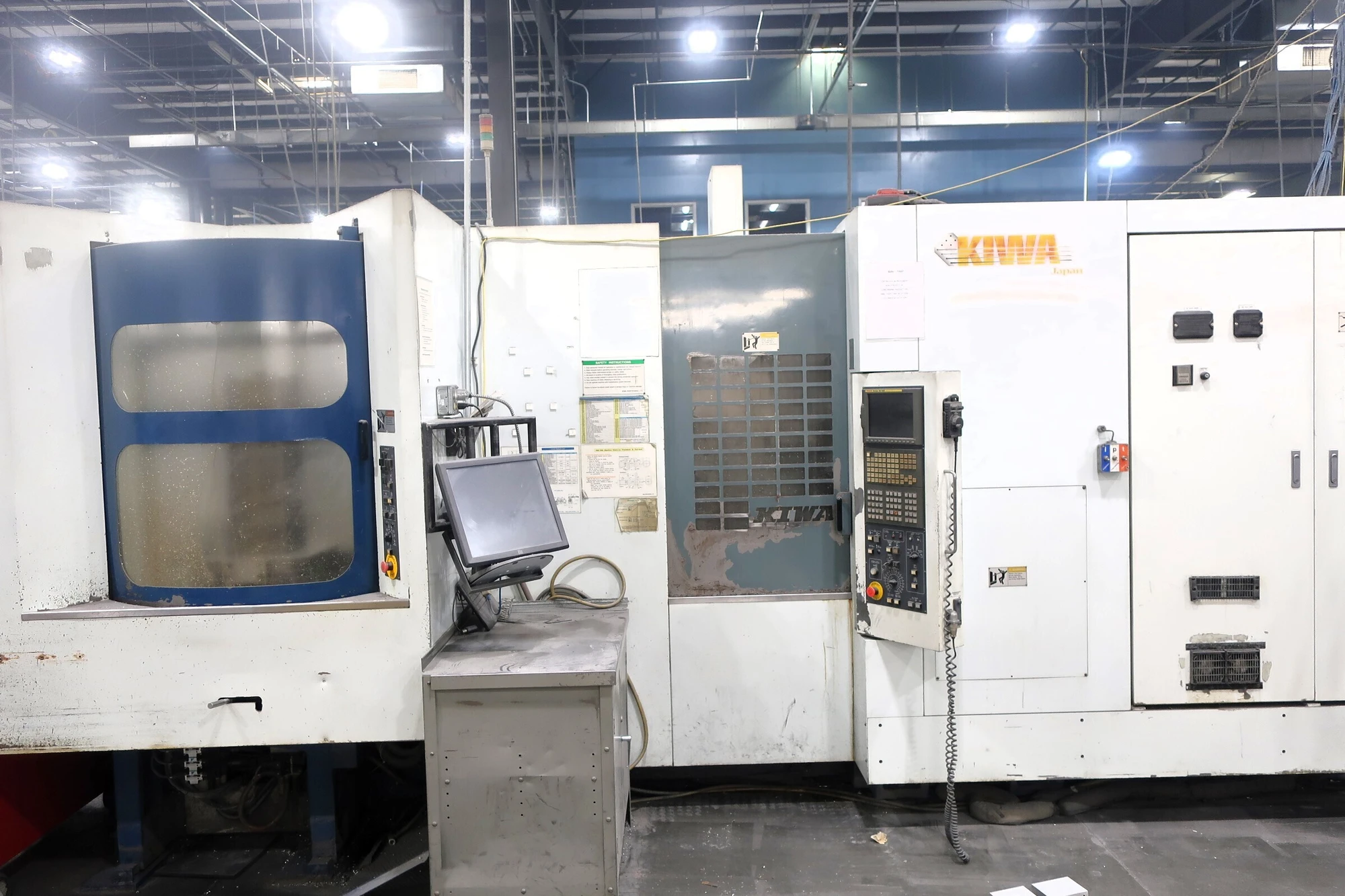

2011 Kiwa KNH-426X 4-Axis CNC Horizontal Machining Center with 6 Pallet Pool. Key features: Fanuc Series 18iM CNC Control, 120 Position ATC, High Pressure Coolant, Chip Conveyor, Renishaw Probing, Thru Spindle Coolant, Big Plus Spindle System. Used.

Specifications
X23.6"599.44 mm
Y24"609.6 mm
Z26.2"665.48 mm
RPM12,000 RPM12,000 RPM
# ATC120120
TaperBT-40BT-40
Pallet-W400 mm15.748"
Pallet-L400 mm15.748"

Pallet Size 19.68″ x 19.68″
Number of Pallets 6
Maximum Weight 881 lbs.
Workpiece Diameter 24.02″
Workpiece Height 32.0″
Spindle to Pallet Center 5.9″ – 32.09″
Spindle to Pallet Surface 3.15″ – 27.27″
X Axis Travel 23.62″ (600 mm)
Y Axis Travel 24.02″ (610 mm)
Z Axis Travel 26.18″ (665 mm)
B-Axis (1⁰Increment)
Rapid Traverse 2,362 IPM
Spindle Speed 12,000 RPM
Spindle Motor 35 HP
Spindle Taper 40 Taper
Magazine Capacity 125
Tool Change Time 1.2 Seconds
Chip to Chip Time 4.0 Seconds 3.6 Seconds
Maximum Tool Weight 18 lbs.
Maximum Tool Diameter (Adj Empty) 7.87″
Maximum Tool Length 14.17″

Equipped With

Fanuc Series 18iMB CNC Control
6 Pallet Pool
125 Position ATC
Chip Conveyor
Coolant Thru Spindle Ready
Big Plus Spindle System
