29" x 79"
| size | 24" chuck | 24" chuck |
| Swing | 29.13" | 739.9 mm |
| Machining Length | 78.74" | 2,000 mm |
| # Axis | 2 | 2 |
| Chuck Size | 20" | 508 mm |
| Bar Capacity | 8.07" | 204.98 mm |
| Power | 50 hp | 37.3 kW |
| Max RPM | 1,300 RPM | 1,300 RPM |
| Turning Dia | 24.01" | 609.85 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (Fanuc Oi-TC) | CNC (Fanuc Oi-TC) |

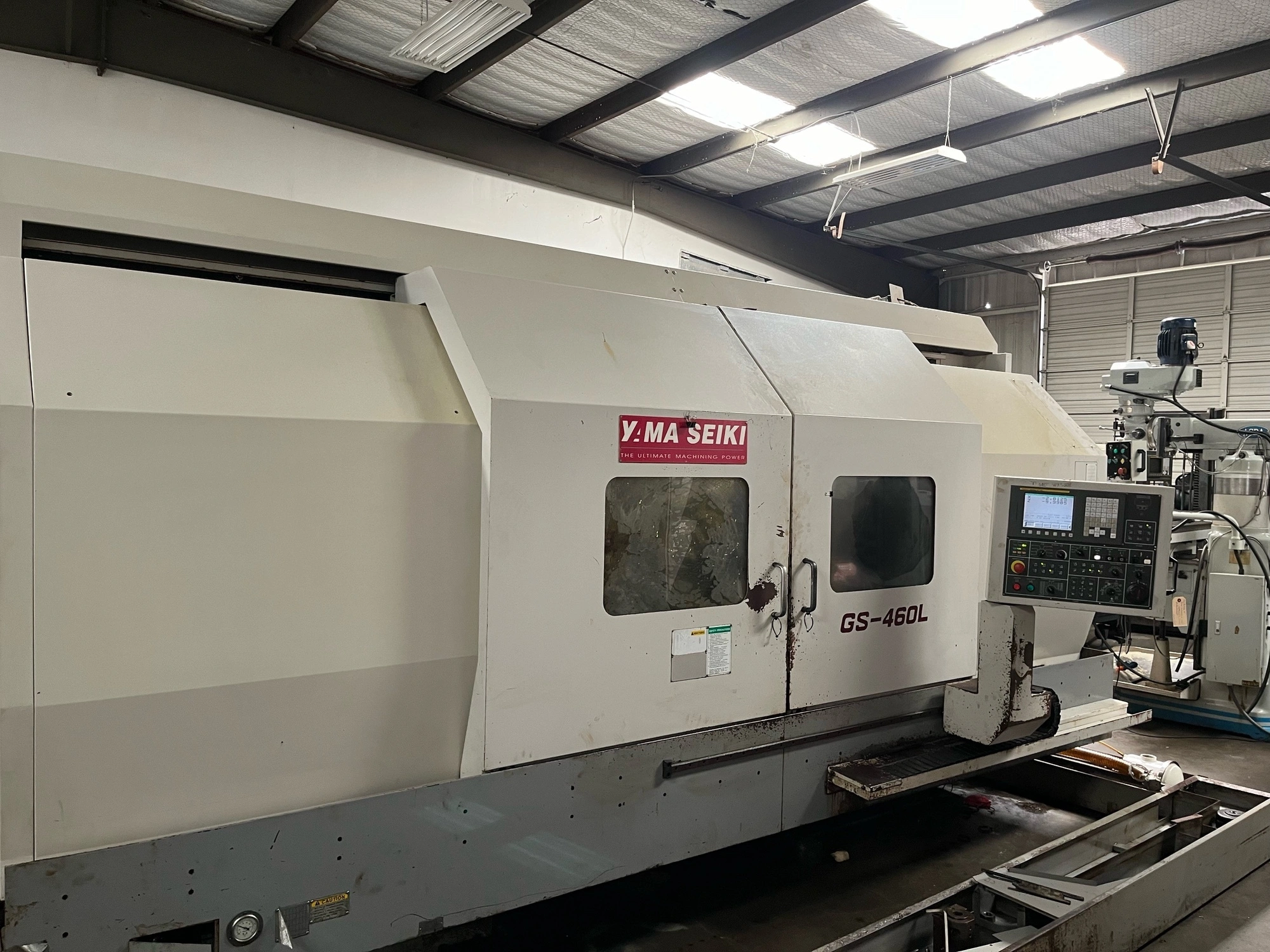

YAMA SEIKI CNC LATHE
Specifications:
Model GS 460 L
Serial number 91C012
Year of manufacture 02/2006
CNC control Fanuc Oi-TC
Maximum swing 29”
Swing over saddle 28”
Maximum turning diameter 24”
Standard turning diameter 22”
Center distance 79”
Spindle bore 8”
Spindle nose A-2-15
Chuck 24 3/4” 3-jaw hydraulic, 10” bore
Main motor 50/60 hp.
Spindle speeds 6-671/1300 rpm, 2 speed gearbox
Travels, X-Z 13” x 80”
Turret stations 12 stations
Tailstock Yes, live quill, 6” travel
Programmable quill/body Yes, Yes
Positioning accuracy +/- 0.0002”
Repeatability accuracy +/- 0.0001”
Voltage 220/3/60
Power requirement 60 kVA
Coolant Yes, 168 gallons
Weight 33,000 lbs.
Machine dimensions 17’ 6” W x 8’ 6” L x 8’ 6” H
Chip pan dimensions 17’ 6” W x 8’ 6” L
Chip conveyor dimensions 15” X x 2’ 4” W x 6’ H
