The rugged Summit® EVS Series CNC Vertical Bed Mills are engineered and manufactured from the finest components with the operator in mind. The newly designed control is centralized for ease of operation, has a larger display, and a power tapping mode. Movement of the head to various angles is easily obtained from the operator’s position. The Summit EVS Series CNC Vertical Bed Mills are versatile enough to effectively serve small one-man machine shops, job shops, R&D departments, tool rooms, and maintenance shops, as well as large, sophisticated manufacturing operations.
| Table-W | 10" | 254 mm |
| Table-L | 54" | 1,371.6 mm |

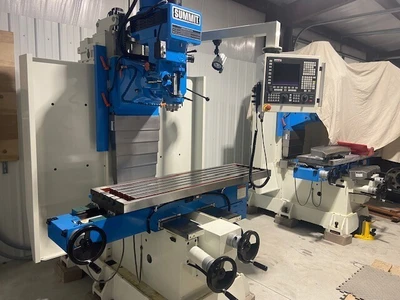

Summit SC EVS-760B 3 Axis CNC Vertical Mill (2022)
Specifications EVS-760B
Travels (X, Y, Z) 51", 24", 27.5"
Motor Size 7.5 HP
Vertical Spindle Speed, (Number) (Infinitely Variable)
Vertical Spindle Speed, Range 70-3800RPM
Table Size (W x L x H) 16.9" x 60" x 3 1/8"
Max. Workpiece Weight 2,200 lbs.
Fagor 8058 Control
Heavy Meehanite cast iron construction for excellent damping
Heavy box saddle & huge box ways on column
Fagor AC Servo Drives and Motors
Precision ground ballscrews with double nut design
Inverter duty, high-energy, high-efficiency motors for lower utility costs, save up to 35%
Glass Scale feedback
