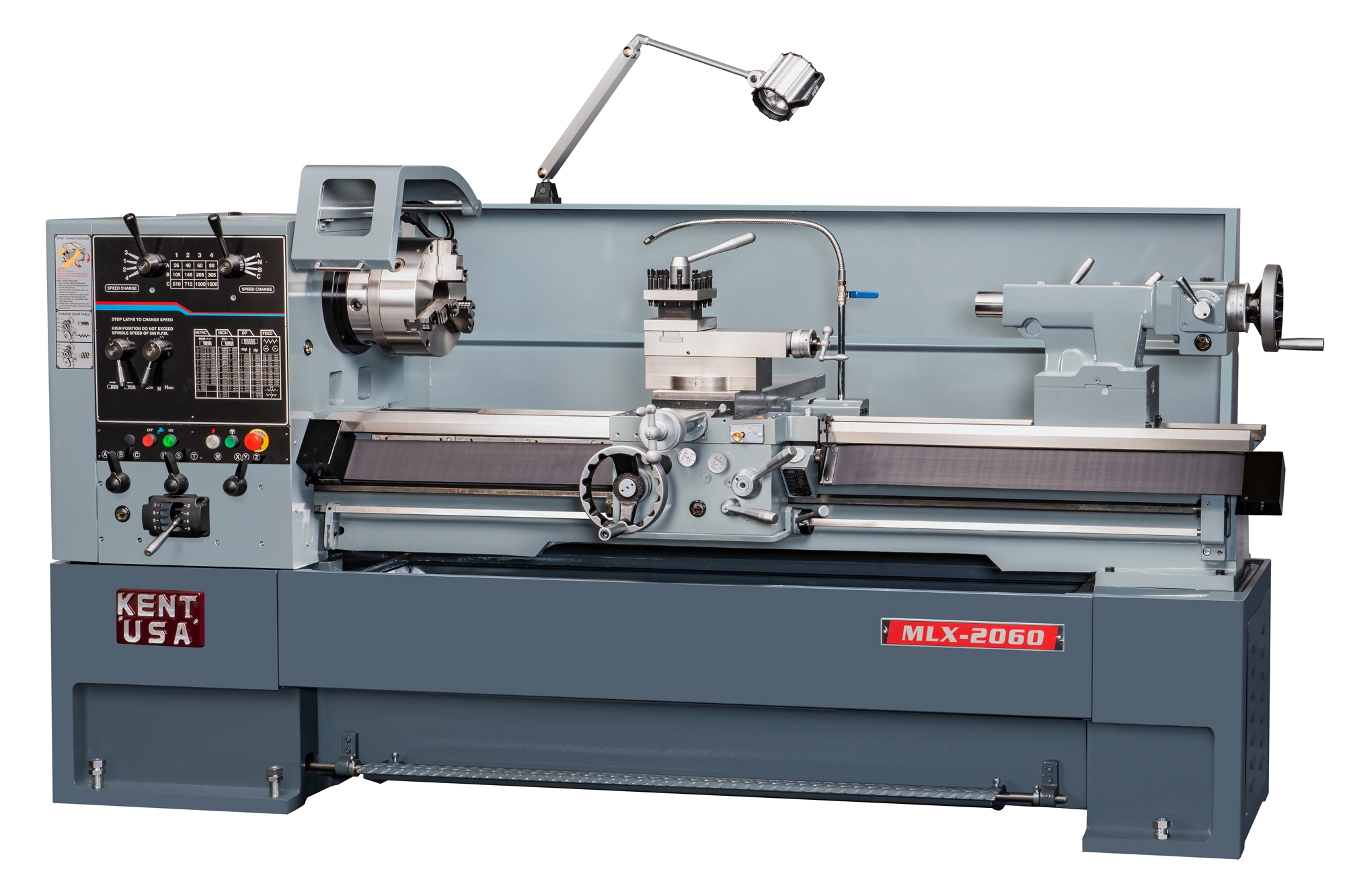

Features
3.125” Spindle Through Hole
Solid Full-Length Casting Base with Front Loading Chip Tray for Easier Cleaning
Adjustable Over-load Feed Clutches
Quick Reversal Feed from Apron
Full-length Safety Foot Brake
Spindle Jog Button Control
One-shot Lubrication for Apron, Carriage, and Bed Ways
Multi-position Adjustable Feed Position Stops
Dual Inch/Metric Calibrated Tailstock Quill with Knockout Tang; Heavy Duty Two Speed Tailstock
Dual Inch/Metric Dials with Quick-change Sleeve
Swing Over Bed 20"
Swing Over Cross Slide 14"
Swing Over Gap 27.5"
Width of Bed 12"
Distance Between Centers 57"
Cross Slide Travel 12"
Top Slide Travel 4.75"
Spindle Bore 3.15"
Spindle Speeds 12
Spindle Speed Range 26-1500 RPM
Through Hole Diameter 3.125"
Spindle Nose D1-8
Spindle Bore Taper MT#5
Thread – Standard (Whit-worth) 45 (2-72) TPI
Thread – Metric Pitch 39 (0.2-14) mm
Longitudinal Feed 0.0015"–0.04" in/rev
Cross Feed 0.00075"–0.02" in/rev
Lead Screw Diameter -
Threading Pitch -
Quill Travel 5"
Quill Diameter 2.3"
Quill Bore Taper MT#4
Main Motor 10 HP
Coolant Pump Motor 1/8 HP
Machine Dimension -
Packing Dimension 115" x 39" x 63"
Machine weight 4560 LBS
Packing weight 5450 LBS
Standard Accessories
3-jaw chuck (10”)
Chuck cover with interlock
Steady rest & Follow rest
Main leadscrew cover
4-position tool post
Coolant system
Full length splash guard
Halogen work light
Thread chasing dial
3 position carriage stop
Bed mount carriage stop
Electric cabinet interlock switch
Optional Accessories
4-jaw chuck
Digital Readout System (View Brochure)
Royal spindle type live center
BTC 3-jaw chuck with back plate (Zero-set)
Taper turning attachment
Rustlick coolant
Micro carriage stop
