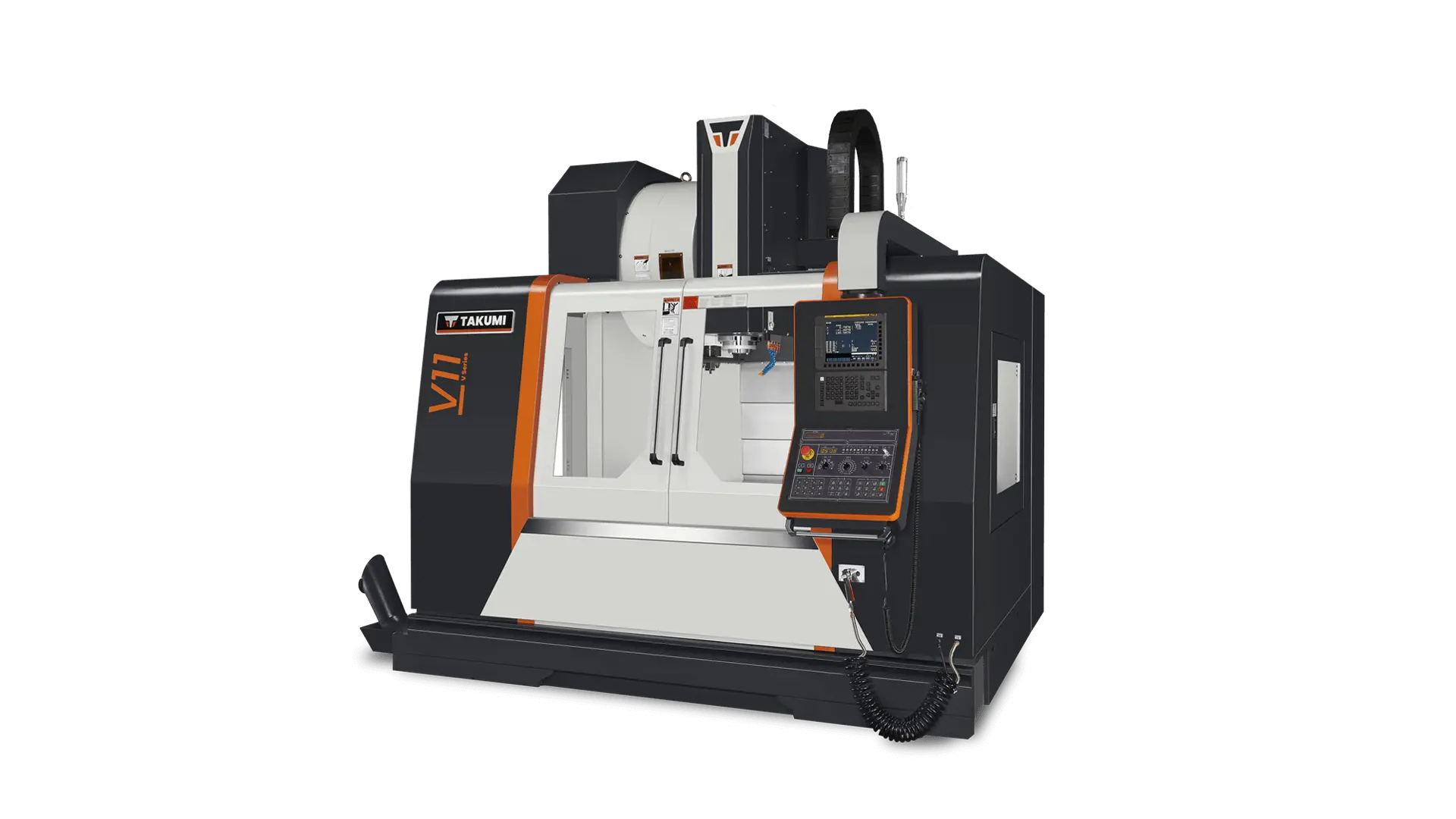

V SERIES BOX-WAY CNC
V Series vertical machining centers are heavy-duty, box-way CNC mills built for tough applications such as roughing cast iron. These 3-axis machines feature belt or geared spindles to provide maximum torque.
High-Rigidity + High-Precision Structure
Perfect combination of heavy cutting and high stability
Designed and built for heavy material removal parts and mold and die industries
Large box ways for rigid and heavy cutting
Pre-tensioned ballscrews minimize thermal growth and improve accuracy
Direct-coupled motors increase accuracy
Swiveling control panel optimizes floor space utilization
Spindle chiller maximizes heat dissipation
Extra wide door openings facilitate loading and unloading
Hand-scraped contact areas
Robust, precision-machined castings
Box-shape bed made of one-piece casting
Integrated washdown and chip management system
Absolute encoders ensure fast startup
FANUC© 0i-MF Series control
Fast, trained, factory service and support
| X | 43.3" | 1,099.8 mm |
| Y | 26" | 660.4 mm |
| Z | 24" | 609.6 mm |
| Power | 25 hp | 18.6 kW |
| RPM | 8,000 RPM | 8,000 RPM |
| # ATC | 24 | 24 |
| Taper | CAT 50 | CAT 50 |
| Table-W | 25.6" | 650.24 mm |
| Table-L | 45.2" | 1,148.1 mm |
| # Axis | 3 | 3 |
| Control | CNC (FANUC 0iMF Plus) | CNC (FANUC 0iMF Plus) |
| Dimensions | 248.03 x 165.35 x 124.02 in | 248.03 x 165.35 x 124.02 in |
| Weight | 14960 lbs | 14960 lbs |
Standard Machine Features
» Heavy Duty, Flame Hardened Box Ways » Enclosure Floor Chip Augers
» 6000 RPM, CAT50 Geared Spindle » Steel Belt Chip Conveyor
» Hand-scraped contact areas » 4th Axis Preparation Wiring
» Fast Rapids 945 IPM X & Y, 787.7 IPM Z
» FANUC 0i Plus Control With 2 Years Parts and Labor Warranty
» 315 IPM Milling Feed Rate
» 24 Station ATC – Random Access » AICC II w/400 Block Look Ahead
» Work Light » Rigid Tapping (M29)
» 3-Light Indicator Lamp » FANUC Set-Up Guidance
» Manual Pulse Generator (MPG) » Compact Flash Port
» Spindle Thermal Chiller » USB Port
» 435 PSI Coolant Through Spindle » Ethernet Port
» Programmable Coolant Wash Down System » Machine Warranty 2 Years Parts, 1 Year Labor Warranty
» Programmable Cutting Air-blow » Leveling Bolts and Pads
» Wash-Down Gun And Air gun » Operator Manuals
Machine power requirements 220 VAC +/- 10% 35 KVA
