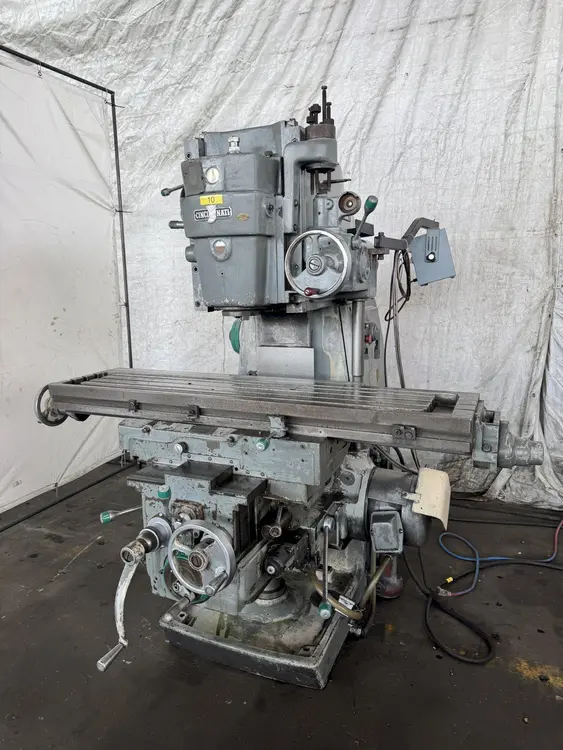

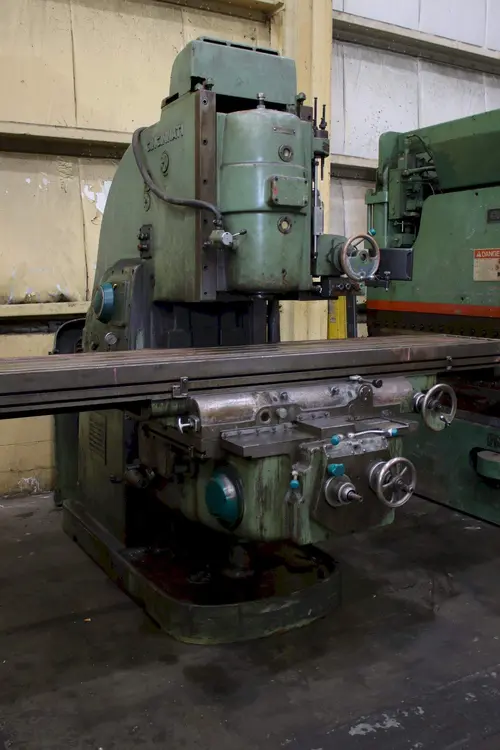

10" X 42" Used Cincinnati Knee Type Milling Machine
Machine Has Been Cleaned & Painted
| Table-W | 10" | 254 mm |
| Table-L | 42" | 1,066.8 mm |
| Travel-Long | 22" | 558.8 mm |
| Travel-Cross | 10" | 254 mm |
| Taper | #40 | #40 |
| RPM | 3,800 RPM | 3,800 RPM |
| Power | 2 hp | 1.5 kW |
| Dimensions | R-L 82" X F-B 65" X 79" Height | R-L 82" X F-B 65" X 79" Height |
| Weight | 3,200 Lbs. | 3,200 Lbs. |
Table Size..............................10" X 42"
Spindle Diameter........................4"
Spindle Taper...........................#40 Standard
Spindle Speeds Variable.................85 To 3,800 Rpm's
Spindle Feeds Manual
Spindle Quill Travel....................5"
Spindle Tilt............................+/- 45 Degrees
Spindle Swivel..........................+/- 45 Degrees
Spindle To Table Min / Max..............6-13/4" / 16-1/4"
Saddle Travel In & Out..................10"
Table Travel Cross......................22"
Knee Travel.............................16"
Table Feeds.............................0.075 To .150 I.P.R.
Main Motor..............................2 Hp.
Floor Space.............................R-L 82" X F-B 65"
Height..................................79"
Weight..................................3,200 Lbs.
Note: Cleaned, Painted & Cycled.
