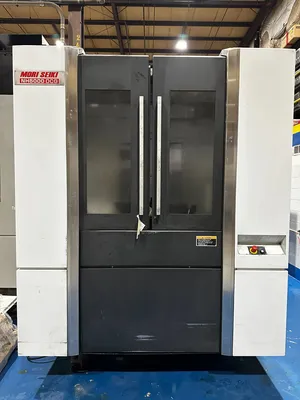

The Mori Seiki NH5000 DCG is a high-precision, horizontal machining center known for its exceptional speed and accuracy, featuring a 500mm square pallet and utilizing DMG MORI's proprietary "DCG (Driven at the Center of Gravity)" technology, often paired with a Direct Drive Motor (DDM) option, allowing for high-speed rotation and precise indexing on its rotary axis, making it ideal for demanding machining applications with fast cycle times; it comes in variations with either a No. 40 or No. 50 taper spindle depending on the desired machining capabilities and work envelope size.
| X | 28.7" | 728.98 mm |
| Y | 28.7" | 728.98 mm |
| Z | 33.5" | 850.9 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 8,000 RPM | 8,000 RPM |
| # ATC | 54 | 54 |
| Taper | CAT 50 | CAT 50 |
| Pallet-W | 19.7" | 500.38 mm |
| Pallet-L | 19.7" | 500.38 mm |
| # Axis | 4 | 4 |
| Control | CNC (MSX-701IV) | CNC (MSX-701IV) |
| Dimensions | 107.3" X 181.5" X 123.5" | 107.3" X 181.5" X 123.5" |
| Weight | 28,820 LBS | 28,820 LBS |
Specifications:
Number of Axis: 4
Pallet Length: 19.7"
Pallet Width: 19.7"
Pallet Load Capacity: 1,100 Lbs.
Pallet Indexing (B-Axis): 1 Degrees
X-Axis Travel: 28.7"
Y-Axis Travel: 28.7"
Z-Axis Travel: 33.5"
Rapid Traverse Rate (X/Y/Z): 1968.5 IPM
Spindle Taper: CAT 50

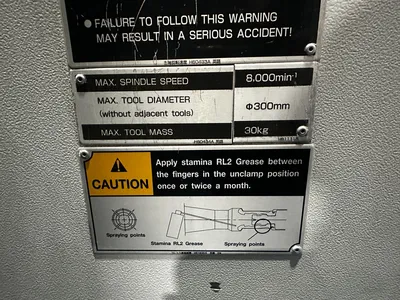

Spindle Speed: 8,000 RPM

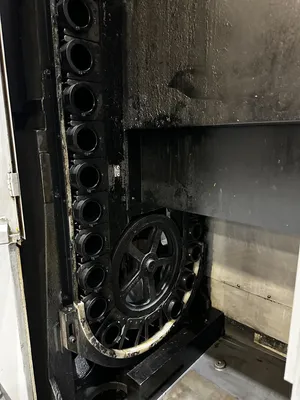

Tool Changer Capacity: 54
Machine Dimensions: 107.3" x 181.5" x 123.5"
Machine Weight: 28,820 Lbs.

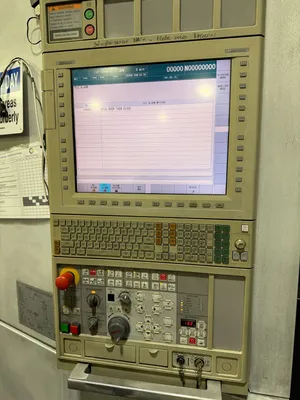

Mori Seiki MSX701-IV Controller
Coolant Tank & Pumps
1° Degree B-axis Indexing

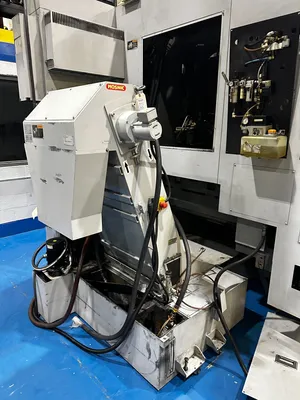

Chip Conveyor
Low Pressure Coolant Thru Spindle
