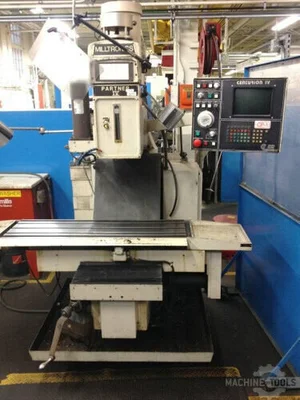

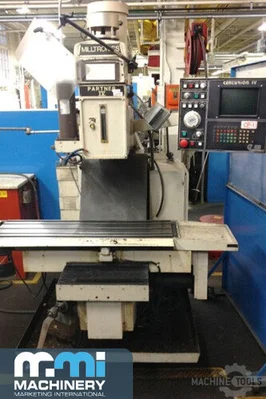

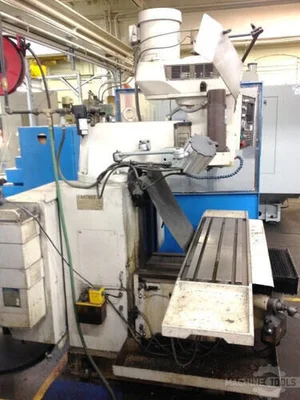

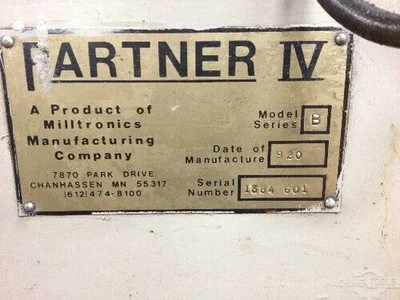

Milltronics Partner IV Series B 1989
| Table-W | 13" | 330.2 mm |
| Table-L | 42" | 1,066.8 mm |
| Travel-Long | 32" | 812.8 mm |
| Travel-Cross | 16" | 406.4 mm |
Table Dimensions:: W x L - 13" x 42"
X Axis Table Longitudinal Travel:: 32"
Y Axis Saddle Cross Travel:: 16"
Table Load Capacity:: 800 LBS
Vertical Head Travel (Z-Axis):: 5"
Spindle To Table, Maximum:: 17"
Spindle To Table, Minimum:: 0"
Spindle Taper:: #40 CAT
Spindle Speeds:: Range 0 to 4000 RPM
Power Rapid Traverse Rate (X/Y):: 300 IPM
Feedrate Range:: 1 to 200 IPM

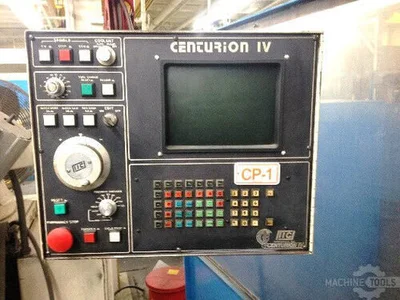

Centurion IV CNC Control
Auto Lube System
