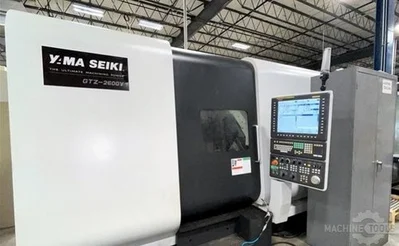

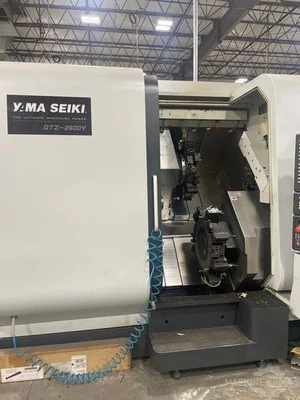

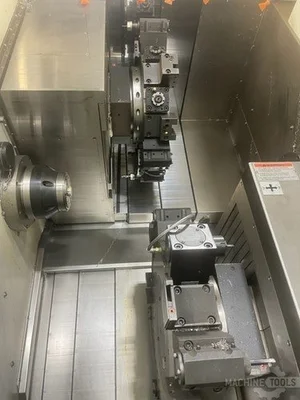

CNC Lathe
| Swing | 10.62" | 269.75 mm |
| Machining Length | 23.3" | 591.82 mm |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 2.55" | 64.77 mm |
| Power | 20 hp | 14.9 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Turning Dia | 9.84" | 249.94 mm |
| Live Tooling | Yes | Yes |
| Sub Spindle | Yes | Yes |
Make an Offer
Inquire Now Buy Now
Activate Pricing
Chuck Size: 8"
Bar Capacity: 2.57"
Swing: 10.62"
Turning Diameter: 9.8"
Spindle Speed: 4,000 RPM

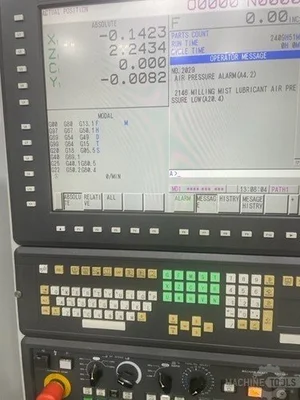

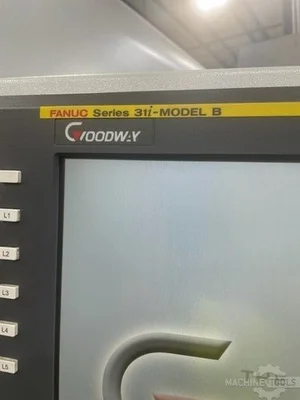

Control: Fanuc 31IB GLINC 350 CNC
Distance Between Centers: 23.3"

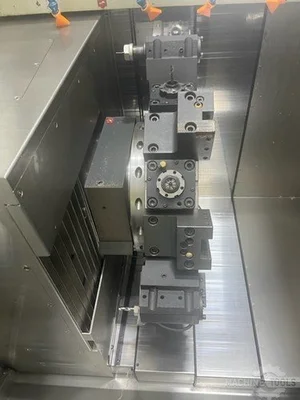

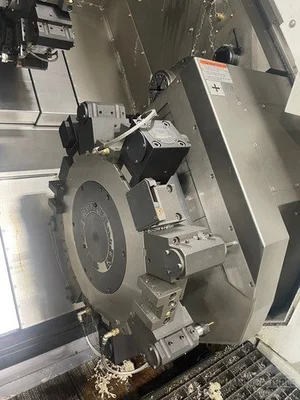

Turret: 16 Station
Live Tooling: C-Axis Live Tooling, Y-Axis
Sub-Spindle: 8" Chuck
X1 Travel: 7.67"
X2 Travel: 8.26"
Z1/Z2 Travel: 24.39"
Maximum Z Travel: 27.16"
Y-Axis Travel: 3.93" +/- 1.96"
Y-Axis Rapid: 393.69 IPM
Y-Axis Feed Rates: 1 - 189 IPM
X/Z Axis Rapids: 945 IPM
X/Z Axis Feed Rates: 1- 1,890 IPM
Live Tooling Speed: 6,000 RPM

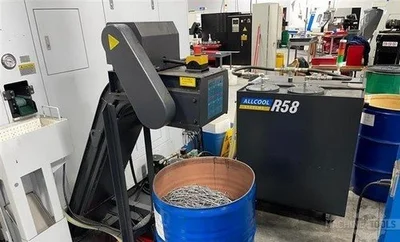

Chip Removal: Chip Conveyor
Approximate Machine Weight: 19,800 Lbs
30 Degree Slant Bed: All Cool R58 1000 PSI High Pressure Coolant System
ATS S26 Collet Chuck (Main and Sub Spindle): Coolant Thru Sub-Spindle

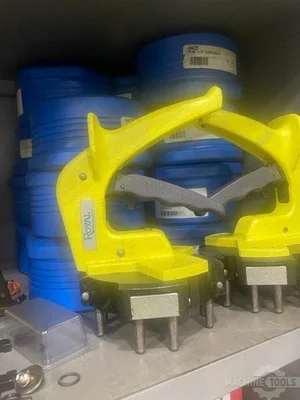

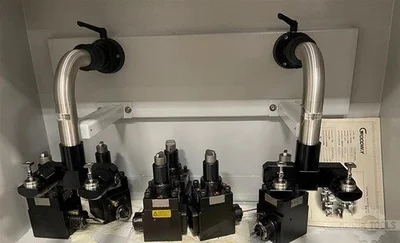

Renishaw Tool Pre-Setter: Tooling (Includes BMT 55 Live Tools Approx 10-12)
Auto Tool Presetter: Bar Feed Interface
Dual Turret: Parts Catcher
