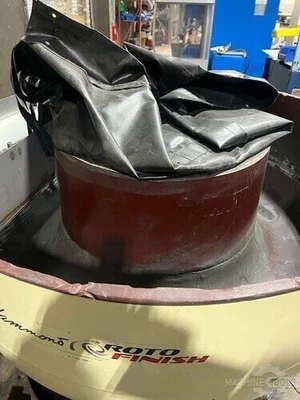

Hammond V-MAX5 Vibratory Finishing Cell w/ Roto-Max Revolution
| Chamber Size | 10.7 ft³ | 10.7 ft³ |
V-Max5
Total Capacity: 10.71 cu. ft.
Max Working Capacity: 5 cu. ft.
Overall Diameter: 48.7"
Overall Height: 46.5"
Process Channel Width: 10.2"
Center Column Diameter: 26"
Screen Deck Width: 8"
Screen Deck Height: 39"
Base Diameter: 47"
Drain Sizes / # of Drains: 4" / 3
Motor: 3 hp
Hours: 3528 Hours
Roto-Max Revolution RM-3R
Total Capacity: 5.107 cu. ft.
Max Working Capacity: 3 cu. ft.
Length: 84"
Width: 51"
Height: 45"
Process Bowl Height: 45"
Process Bowl Diameter: 90"
Drain Sizes/ # of Drains: 4" / 2
Motor: 7.5 hp
Hours: 5663 Hours
