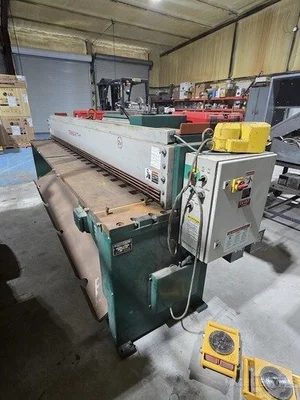

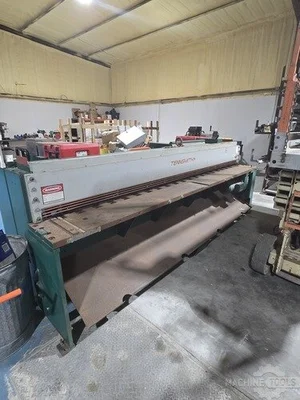

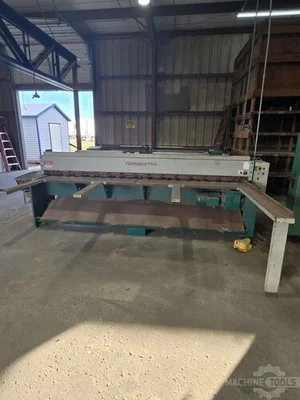

10 Ga X 10’ Low Profile Electro-Mechanical Shear with Foot Pedal Control.
| Max Gauge | 10 gauge | 10 gauge |
| Length of Blade | 121" | 3,073.4 mm |
10 Ga X 10’ Low Profile Electro-Mechanical Shear with Foot Pedal Control.GENERAL SPECIFICATIONS Mild Steel Capacity: 10Ga / 3.5mmStainless Steel Capacity: 14 ga / 2.0mmMax Cutting Length: 121”Backgauge Range: 30”Strokes Per Minute Full Length: 35Number of Hold Downs: 16Motor: 230/460V, 3 - Phase, 60 Hz, 12.5 HPDimensions Less Gauges: 145” X 39” X 60” HFloor Space, Gauges in Position: 145” X 78” X 60” HShipping Weight: 9,400 LbsINCLUDES: Foot Pedal Control.
