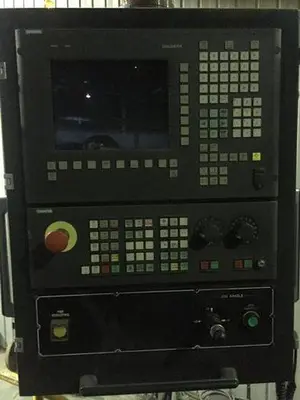

Siemens 840D CNC Control System
4-Jaw Manual Chuck
Chip Conveyor
3 Way Bed
Manufacturer: Hwacheon
Model: Mega 11-260-6T
Year: 2011
Condition: Used
Stock Number: 10392
Between centers: 6,000 mm
Capacity between centers: 25 Ton
Swing over bed: 2,650 mm
Swing over slide: 2,200 mm
Chuck diameter: 2,030 mm
Spindle speeds: 1 - 130 rpm
Main spindle drive power dc: 100/140 kW
Quill stroke: 300 mm
Spindle torque: 7,647 kgf/m
Rapid speed x,z axis: 4/6 m/min
Machine dimensions lxwxh: 13,500 x 4,200 x 3,725 mm
