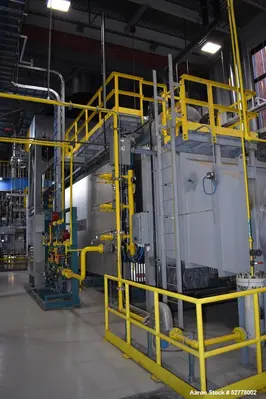

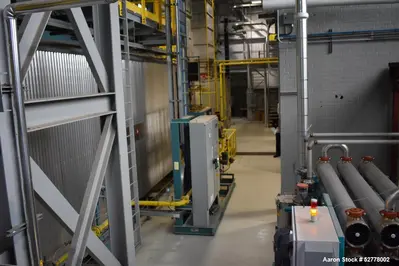

Used Cleaver Brooks Heat Recovery Steam Generator (HRSG); Model MF-4/S-85; Burner Model DB-66-G-3; Capacity 90,000 lb/hr (170 psig saturated steam); O-type HRSG with mud dream and steam drum; Natcom Duct Burner System; (3) Duct Burner Elements; Burner Management System; Top exhaust to feedwater economizer. Mfg. 2015.
Used Equipment Facts About This Machine
Manufacturer Information:
Manufacturer: Cleaver Brooks
Model: MF-4/S-85
Condition: Used
Year Built: 2015
Manufacturing Data:
Capacity: 90,000 lb/hr (170 psig saturated steam)
HRSG Type: O-type with mud drum and steam drum
Burner Model: DB-66-G-3
Duct Burner System: Natcom
Duct Burner Elements: (3)
Burner Management System: Yes
Exhaust System: Top exhaust to feedwater economizer
Description:
The Cleaver Brooks MF-4/S-85 Heat Recovery Steam Generator (HRSG) is a high-efficiency industrial boiler system designed to recover waste heat and convert it into steam. With a 90,000 lb/hr steam production capacity at 170 psig, this HRSG is ideal for large-scale power plants, refineries, and industrial steam applications.
Featuring an O-type design with both a mud drum and steam drum, this HRSG ensures efficient heat transfer and reliable operation. The system is equipped with a Natcom Duct Burner System, including three duct burner elements, allowing for additional steam generation when needed.
The integrated burner management system (BMS) provides automated monitoring and safety controls, while the top exhaust design feeds directly into the economizer, maximizing heat recovery efficiency.
Specifications:
Steam Capacity: 90,000 lb/hr
Pressure Rating: 170 psig saturated steam
Burner Model: DB-66-G-3
HRSG Configuration: O-type with mud drum and steam drum
Duct Burner System: Natcom with (3) duct burner elements
Exhaust System: Top exhaust to feedwater economizer
Burner Management System: Integrated for control and monitoring
Year Built: 2015
Applications:
Power generation
Refinery and petrochemical plant operations
Industrial steam generation
Waste heat recovery for large-scale industrial processes
Cogeneration (combined heat and power) systems
Potential Uses:
Steam production for power plants
Boiler feedwater heating through waste heat recovery
High-efficiency industrial heat and steam management
Supplementary firing for increased steam output in industrial processes
Process steam for manufacturing, food production, and chemical processing
