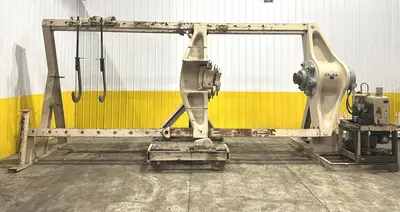

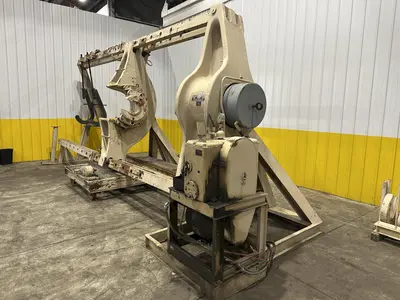

SERIAL ......................... 1F600-1014MODEL .......................... 1F600-8424
CAPACITY ....................... 600 TONSRAM DIAMETER ................... 9-1/2"STROKE OF RAM .................. 24"
DUAL ACTION RAM CYLINDER ....... YESVERTICAL BETWEEN STRAIN BARS ... 84"DISTANCE RAM TO PUSH BLOCK ..... 30" TO " 180" MAXRESISTANCE BLOCK HOLE SIZE ..... 24" OD X 24" WIDE
STRAIN BARS .................... 2 TOP & 2 BOTTOM
STRAIN BARS DIMENSIONS ......... 3" THICK X 6" HIGH
STRAIN BAR ADJUSTMENT POINTS ... YES, 12" CENTERSPUSH BLOCK PLATE ADAPTOR ....... YES
ASSORTED TOOLING & PUSH BLOCKS . YES

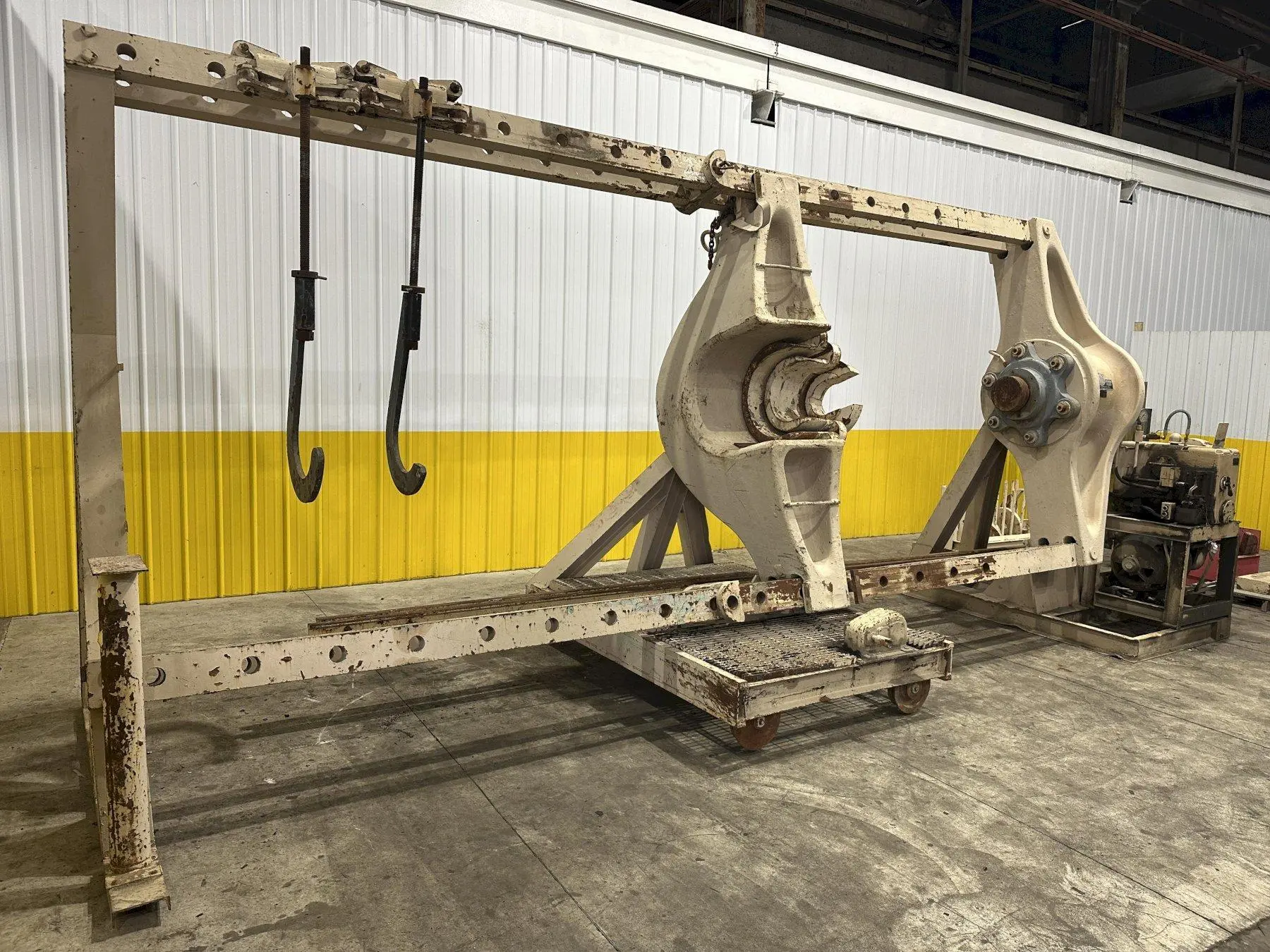

J-HOOK SUPPORTS ................ 2, ADJUSTABLEMOUNTED ON COMMON BASE ......... YES

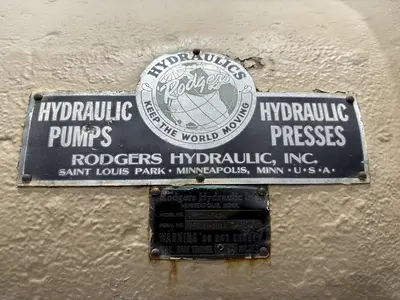

RODGERS HYDRAULIC UNIT:
SERIAL ......................... 730-1-1582
MODEL .......................... B/M40AMV2-4V6
MOTOR .......................... 15 HP
Brand
Not Specified
Type
Presses, Wheel
Stock No.
22674
