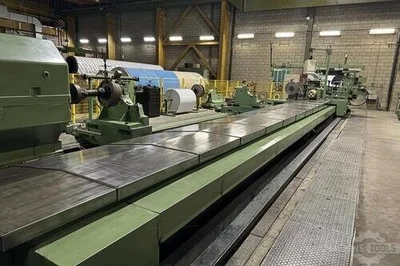

Upgraded in 2014This roll grinding machine is located in a paper mill and used as in house service for grinding the paper machine rolls. The machine has been upgraded with Siemens software.The machine includes a Mann+Humel filtering installation.
Manufacturer: Waldrich Siegen
Model: WST 1V H
Year: 1986
Condition: Used
Stock Number: 11200
Max weight of roll: 50 Ton
Roll length: 13,000 mm
Roll diameter: 2,000 mm
Grinding spindle speed: 450 - 1,800 rpm
Cutting speed: 10 - 45 m/s
Adjustment distance: 13,900 mm
