USED 2011 DOOSAN LYNX 300

USD $29,500.00
1 available
Overview
Manufacturer:
DOOSAN
Model:
LYNX 300
Year:
2011
Stock #:
23202
Status:
For Sale
Description

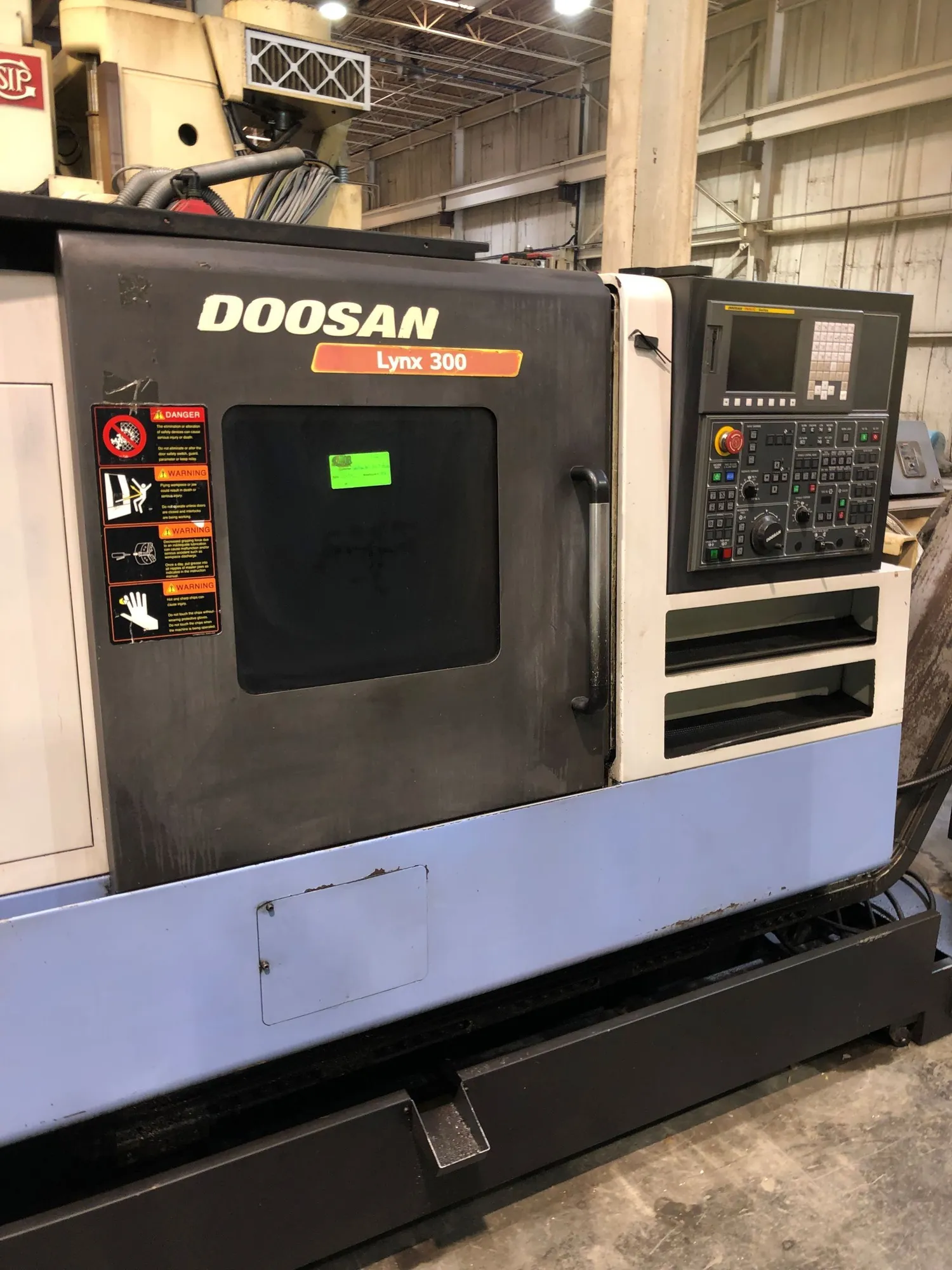

DOOSAN LYNX 300 CNC Lathe, a 2011 model with 2-axis capabilities, offers a swing of 25.6" and machining length of 30.1". Features 20 HP spindle, 10" chuck, and tailstock. Max RPM: 3,500.

Specifications
Live ToolingNoNo
Y-AxisNoNo
Sub SpindleNoNo
Swing25.6"650.24 mm
Machining Length30.1"764.54 mm
# Axis22
X Travel10"254 mm
Z Travel31.1"789.94 mm
Chuck Size10"254 mm
Bar Capacity3"76.2 mm
Power20 hp14.9 kW
Max RPM3,500 RPM3,500 RPM
Turning Dia17.7"449.58 mm
TailstockYesYes
BarfeedNoNo

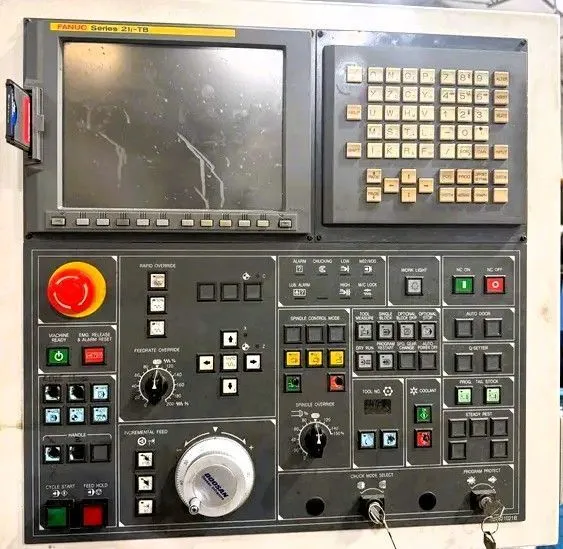

ControlCNC (CNC Fanuc)CNC (CNC Fanuc)
Dimensions118x70x67.5118x70x67.5
Weight8930 lbs8930 lbs
Equipped With

20 HP High Torque Spindle
Tailstock
3 Jaw Chuck
