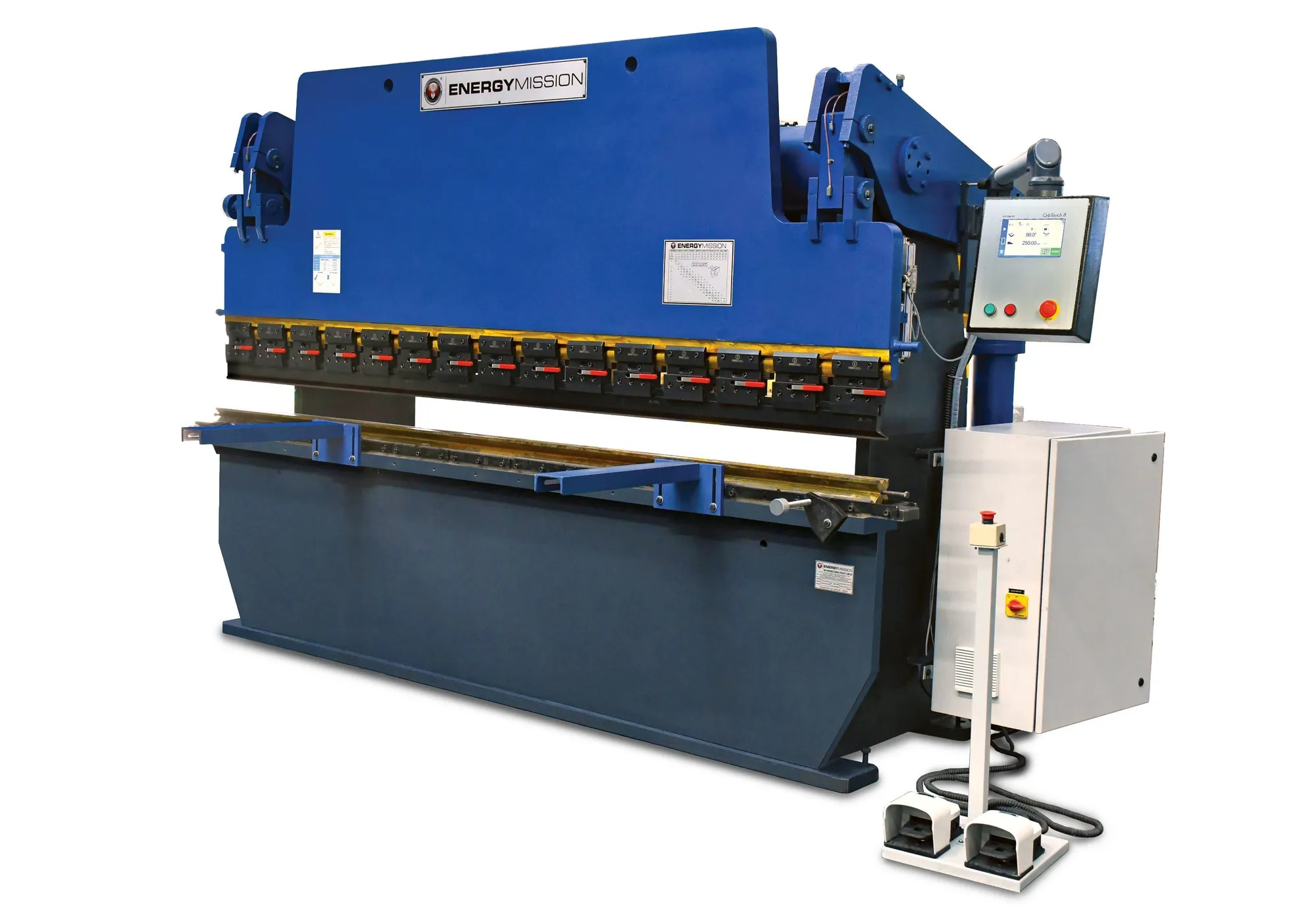

New 10' x 110-Ton Press brake with CybTouch 8, Wila upper beam, standard tooling, manual crowning and more!
Bending Tons 110
Bending Capacity (Mild Steel) 10’
Table Size 7” x 10’
Clear Pass. 100”
Ram Strokes 6”
Open Height 13”
Closed Height 7”
Throat Depth 8”
Approach Speed 1.1”/sec
Pressing Speed .15”/sec
Return Speed 1.2”/sec
Motor 10HP
Weight 12,500 LBS
Dimensions 127”x61”x90”
Oil Tank Capacity 92 Gal
Oil Specification 68 grade Hyd. Oil
Movable Workstation with Foot Switch
American Goosneck Punch in Sections
4-Way Die in Sections
Centralized Lubrication System with Hand Pump
Main Drive Motor
Fine Stroke Adjustment Rod with Limit Switch
X,R Joystick Power Z1,Z2
NC Back Gauge with Cybelec CYB-8PS Controller
Manual Crowning
Wila Upper Beam with Hyd. Valve
220 Volt 3-Phase
