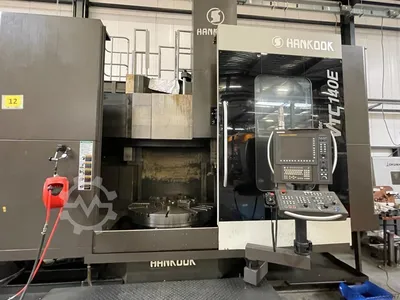

HANKOOK VTC140E Ram Type Vertical Boring & Turning Machine with C-Axis & Driven Tools
HEAVY DUTY 3-AXIS FIXED & ELEVATING CROSSRAIL RAM TYPE CNC VERTICAL BORING AND TURNING MACHINE WITH HARDENED & GROUND BOX GUIDEWAYS, C-AXIS & LIVE TOOLS
FEATURES
Heavy Duty Cast Iron Bed Construction for High Accuracy & Rigidity.
Heavy Duty Hardened and Ground Slideways to Provide Increased Stability and Rigidity.
2 Step Automatic Gear Change.
24 Position Tool Magazine.
FANUC 32iA CNC
Founded in 1969, Hankook Machine Tools Co Ltd is a specialist manufacturer of high-technology CNC metalworking machine tools steeped in history and located in Changwon, Korea. The company currently employs 150 people and supplies its highly-reputable products to over 70 countries worldwide.
| Table Dia | 55" | 1,397 mm |
| Swing | 63" | 1,600.2 mm |
| Work Ht-U/R | 55" | 1,397 mm |
| Power | 60 hp | 44.7 kW |
| RPM | 30 RPM | 30 RPM |
| Control | CNC (FANUC 32iA) | CNC (FANUC 32iA) |
| Dimensions | 192"L x 153"W x 204.3"H | 192"L x 153"W x 204.3"H |
| Weight | 68,200 LBS | 68,200 LBS |
Max. Turning Diameter Ø 1600 mm 63"
Table Diameter Ø 1400 mm 55"
Max Turning Diameter 1600 mm 63"
Max Turning Height 1400mm 55.4"
Stroke ram left 900 mm 35.4"
Vertical Travel of Crossrail 700mm 27.5"
ATC / revolver 24 Tools
Turning 12 Tools
Rotary Tools 12 Tools
Speeds / ranges 320 RPM
Power 45 kW 50 HP
Maximum turning height 1400 mm 55"
C-Axis 360.000 °
Cross Rail Rapid Traverse 11.8" IPM
Spindle Taper ISO #50
Power live tools 20 kW 25 HP
Rotary Tool RPM 3,000 RPM
Rapid Traverse X Axis 295 IPM
Rapid Traverse Z Axis 295 IPM
Length 4875 mm 192"
Width 3885 mm 153"
Height 5190 mm 204.3"
Weight 31,000 kgs 68,200 LBS
HEAVY DUTY 3-AXIS FIXED & ELEVATING CROSSRAIL RAM TYPE CNC VERTICAL BORING AND TURNING MACHINE WITH HARDENED & GROUND BOX GUIDEWAYS, C-AXIS & LIVE TOOLS
CHIP CONVEYOR & CHIP BUCKET
30 BAR THROUGH SPINDLE COOLANT SYSTEM
MEASUREMENT SYSTEM C-AXIS SCALE TRANSFORMER
HYDRAULIC 3-JAW & MANUAL 4-JAW COMBINATION CHUCK WITH4 MANUAL ADJUSTABLE JAW BODIES
AUTOMATIC TOOL SETTING DEVICE
TOOLING INCLUDED
DINE TOOLCHANGEABLE ANGULAR MILLING HEAD WITH 40 ISO OUTPUT
2 OFF SANDVIK CAPTO C6 TURNING TOOLHOLDERS WITH TWO OUTPUTS (V & H)
1 OFF SANDVIK CAPTO C6 AXIAL TURNING HEAD
7 OFF BT50 DRIVEN TOOLHOLDERS
1 OFF HANKOOK TA12B4121015043
1 OFF HANKOOK TA12B412015142
1 OFF HANKOOK TA12410000161
2 OFF HANKOOK TA12417010160
