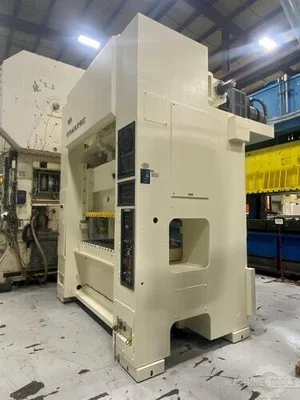

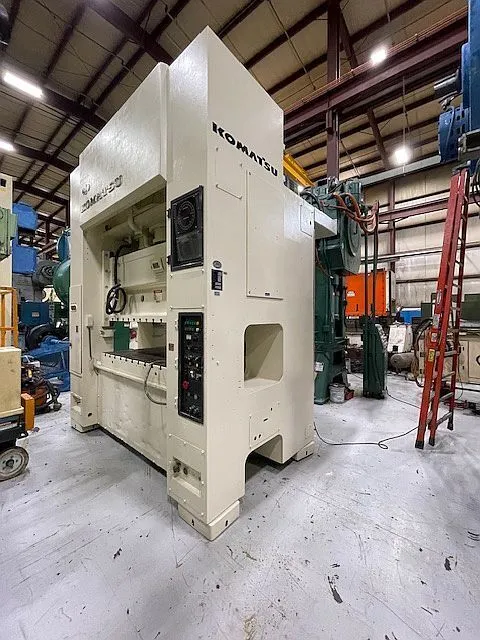

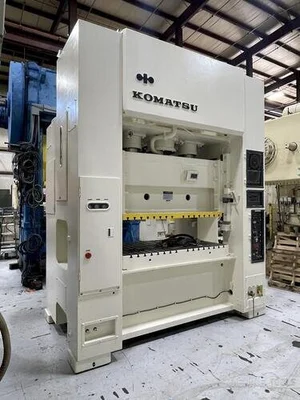

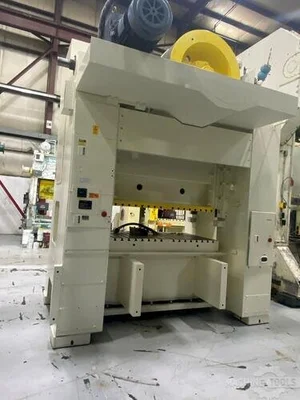

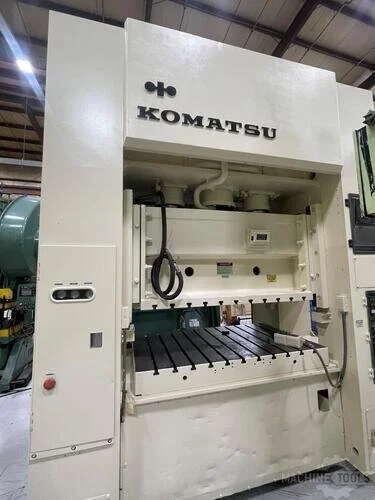

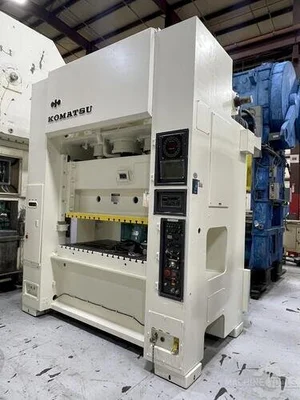

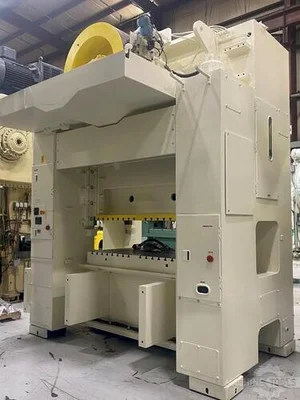

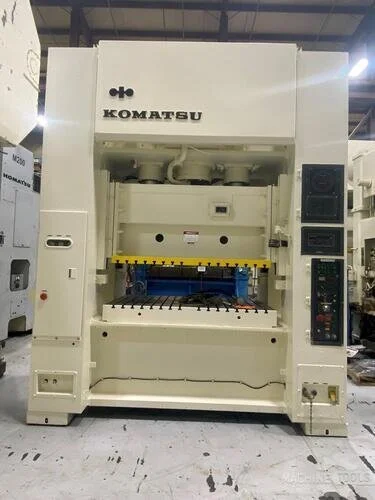

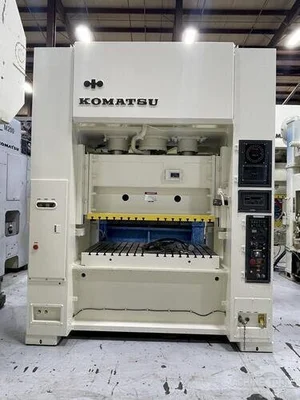

200-ton Komatsu Model E2M200 Straight Side Metal Stamping Press For Sale, Year 1988
| Tonnage | 200 T | 181.437 t |
| Stroke | 5.9" | 149.86 mm |
| Shut Height | 24.8" | 629.92 mm |
| SPM | 100 strokes/min. | 100 strokes/min. |
| Bed W | 43" | 1,092.2 mm |
| Bed L | 72" | 1,828.8 mm |
| Crank (Single/Double) | Double | Double |
| Air Clutch (Yes/No) | Yes | Yes |
Tonnage: 200
Stroke: 5.9 inches
Shut Height: 24.8 inches
Adjustment: 3.9 inches
Bed Size: 72.8 LR x 43.3 FB
Ram Area: 72.8 LR x 35.4 FB
SPM: 20-100

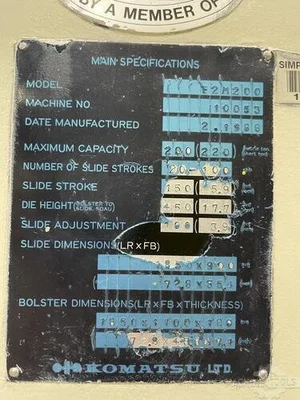

Standard Specification Used Komatsu Metal Stamping PressModel E2M200 sn/ 10053200-ton Metric Capacity220-ton US Capacity (Short)5.9" Stroke24.8" Shut Height on Bed17.7" Die Height on Bolster3.9" Motorized Adjustment72.8" LR x 35.4" FB Slide Area72.8" LR x 43.3" FB Bed Area20-100 VSPMEquipment and Features Hydraulic Clutch and BrakeAir Counterbalances Recirculating Lube SystemT-Slotted Ram and BolsterKomatsu Press ControlsLight CurtainsHydraulic Overload ProtectionPlunger Guided to maintain parallelism and horizontal accuracy of slide for extends die life.Unitized Frame of Cast Steel ConstructionT-Stand Palm Button Station8 Point Gibs7.1" Thick Bolster Plate25.6" Wide WIndows (to be confirmed)Vibro Dynamic Isolation PadsFloor StandingThis used 200-ton Komatsu Metal Stamping Press can be seen under power in the S&G Press Livonia Warehouse!Click here for more 200-ton Press Options
This used Komatsu E2M200 offers 220 US tons of stamping power with a 5.9" stroke and variable speeds up to 100 SPM. Its large bed and slide areas accommodate sizable dies. Features like hydraulic overloads and a robust build make it suitable for diverse blanking and progressive die stamping applications
Used Komatsu Presses, 200 ton Straight Side Used Mechanical Metal Stamping Press For Sale
