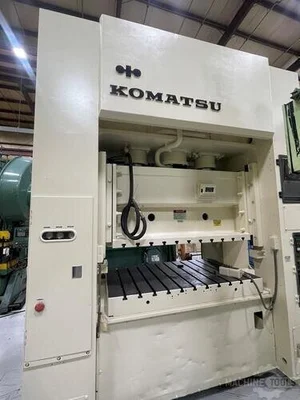

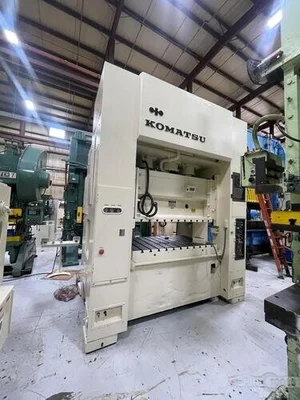

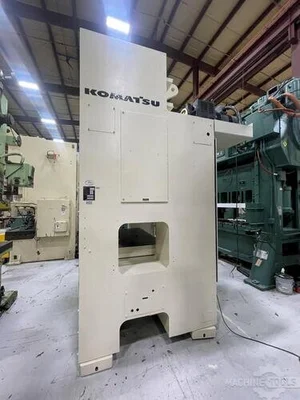

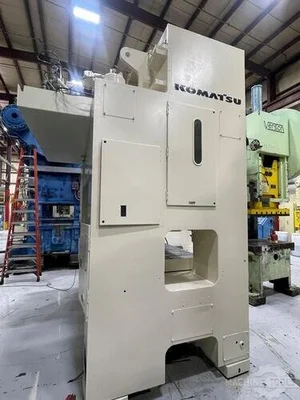

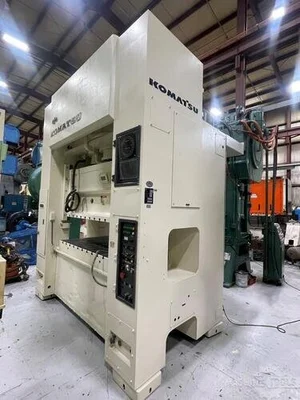

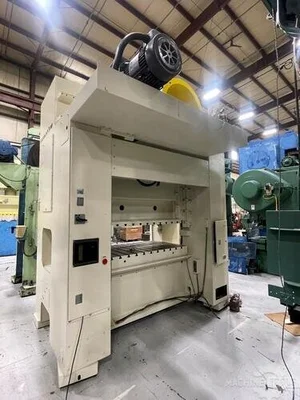

200-ton Komatsu Model E2M200 Straight Side High Speed Metal Stamping Press For Sale, 4.3" Stroke, Year 1988
Tonnage: 200
Stroke: 4.3 inches
Shut Height: 24.8 inches
Adjustment: 3.9 inches
Bed Size: 72.8 LR x 43.3 FB
Ram Area: 72.8 LR x 35.4 FB
SPM: 60-150

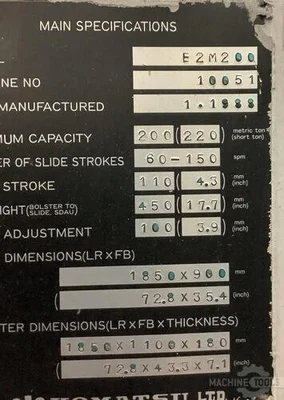

Standard Specification Used Komatsu Metal Stamping PressModel E2M200 sn/ 10051200-ton Metric Capacity220-ton US Capacity (Short)4.3" Stroke24.8" Shut Height on Bed17.7" Die Height on Bolster3.9" Motorized Adjustment72.8" LR x 35.4" FB Slide Area72.8" LR x 43.3" FB Bed Area60-150 VSPMEquipment and Features Hydraulic Clutch and BrakeAir Counterbalances Recirculating Lube SystemT-Slotted Ram and BolsterKomatsu Press ControlsLight CurtainsHydraulic Overload ProtectionPlunger Guided to maintain parallelism and horizontal accuracy of slide for extends die life.Unitized Frame of Cast Steel ConstructionT-Stand Palm Button Station8 Point Gibs7.1" Thick Bolster Plate25.6" Wide Windows Vibro Dynamic Isolation PadsFloor StandingThis 200-ton Komatsu Metal Stamping Press can be seen under power in the S&G Press Livonia Warehouse!Click here for more Komatsu Press Options and here for 200-ton Press Options.This used Komatsu E2M200 straight side mechanical metal stamping press, boasting a 220 US ton capacity, presents a valuable opportunity for manufacturers seeking reliable and efficient stamping solutions. Its 5.9-inch stroke and variable speeds up to 100 SPM provide versatility for a range of production needs. The expansive bed and slide areas accommodate sizable dies, enabling the processing of larger components. Equipped with features such as hydraulic overloads, this press ensures precision and protects tooling during demanding blanking and progressive die stamping applications. Its robust construction guarantees durability and consistent performance, making it a sound investment for long-term production efficiency. Explore this Komatsu press to enhance your Highspeed metal stamping capabilities.200 ton Straight Side Mechanical Metal Stamping Press For Sale, Coil Feed Equipment for Metal Stamping
