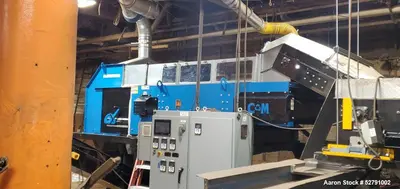

Used CM Eddy Current Separator that has a full dust hood with viewing ports. Javelin Model ESC481690RA043,48" wide 16 pole. High Polarity Fines Rotor using N52 Magnets; Rulmeca internal drive pulley; Polyurethane belt w/ hidden SS splice; Belt effective width between corrugated side walls is 48"; 90" length between front end centerline to rear pulley centerline; Frame and guards to be powder coated; 10" OD carbon fiber shell; Single Cut Splitter Box; designed to run at 3000 RPM; Material size to be sorted: 2" minus.
USED EQUIPMENT FACTS ABOUT THIS MACHINE
Manufacturer Info:
Manufacturer: CM (Consolidated Machinery)
Model: Javelin ESC481690RA043
Condition: Used
Type: Eddy Current Separator
Rotor Type: High Polarity Fines Rotor
Description:
This used CM Javelin Eddy Current Separator is engineered for high-efficiency non-ferrous metal recovery and fines separation. Featuring a 48" wide, 16-pole high polarity rotor with N52 rare earth magnets, this separator is designed for optimal performance in sorting 2” minus materials. Built with a Rulmeca internal drive pulley, polyurethane belt with hidden stainless steel splice, and carbon fiber shell, this unit delivers durability and consistent operation at up to 3000 RPM. It also includes a full dust hood with viewing ports, powder-coated frame, and single cut splitter box, making it an ideal solution for recycling, MRFs, and scrap processing.
Specifications:
Model: ESC481690RA043
Rotor Width: 48"
Pole Count: 16 poles
Magnet Type: N52 Neodymium (rare earth)
Rotor Type: High Polarity Fines Rotor
Material Size: 2” minus
Operating Speed: 3000 RPM
Pulley Drive: Rulmeca internal drive pulley
Belt Type: Polyurethane with hidden stainless steel splice
Effective Belt Width: 48" (between corrugated side walls)
Shell Material: 10" OD carbon fiber
Frame Coating: Powder coated
Dust Control: Full dust hood with viewing ports
Splitter: Single cut splitter box
Unit Length (centerline to centerline): 90”
Applications:
Non-ferrous metal recovery
Municipal solid waste (MSW) processing
MRF and recycling center sorting
WEEE/e-scrap recycling
Plastic and metal sorting lines
Automotive shredder residue (ASR) cleanup
Scrap yard sorting
Construction and demolition (C&D) recycling
Aluminum and copper recovery
Electronics recycling
What Products Would This Be Used For:
Shredded aluminum
Copper wire and tubing
Non-ferrous metal fines
E-waste (WEEE) components
Plastic and metal mixture separation
Auto shredder residue (ASR)
Beverage can separation
Clean-up of shredded electronics
Scrap from C&D materials
Small non-magnetic metal recovery
