Used Labtex Spray Dryer, Model ESTDi. Components include: Main drying chamber; Stainless steel atomizer .5mm jet nozzle assembly; Inlet air filter; Peristaltic pump; Blower; Heater; Compressor: U-bend; Conveying tube; Cyclone; Control panel; Additional ancillary equipment/parts. 3000 W max. heater power; 19.8 Ft/s max. blower speed; .515 gal/hr max. pump speed; 41-90 degrees F min/max. ambient temperature; Ambient to 392 degrees F temperature range.1/50-60/220-240V. Built 2018. Previously used for SiO/TiO2.
Used Equipment Facts About This Machine
Manufacturer Information:
Brand: Labtex
Model: ESTDi
Type: Bench-Scale Spray Dryer
Condition: Used
Build Year: 2018
Power Supply: 1 Phase / 50–60 Hz / 220–240V
Description:
This Used Labtex ESTDi Spray Dryer, built in 2018, is a compact, high-efficiency lab-scale spray drying system, ideal for R&D, pilot studies, and small-batch powder production. Capable of processing up to 0.515 gallons per hour, this unit features a stainless steel atomizer with a 0.5 mm jet nozzle assembly, and includes a complete set of components for full drying capability.
Designed for temperature-sensitive and specialty materials, this dryer reaches up to 392°F (200°C) and operates in ambient conditions between 41°F and 90°F. Previously used for SiO₂ and TiO₂ (silica/titania) drying, it’s well-suited for nanomaterials, fine chemicals, food ingredients, and pharmaceuticals.
Specifications:
Model: ESTDi
Manufacturer: Labtex
Heater Power: 3000 W max
Max Blower Speed: 19.8 ft/s
Max Pump Speed: 0.515 gal/hr (1.95 L/hr)
Operating Temp Range: Ambient to 392°F (200°C)
Ambient Temp Range: 41°F to 90°F
Power Requirements: 1/50–60/220–240V
Build Year: 2018
Condition: Used – Excellent working condition
Previous Use: Spray drying of silica (SiO₂) and titania (TiO₂)
Included Components:
Main drying chamber
Stainless steel atomizer with 0.5 mm jet nozzle
Inlet air filter
Peristaltic feed pump
Blower unit
Electric heater
Air compressor
U-bend
Conveying tube
Cyclone separator

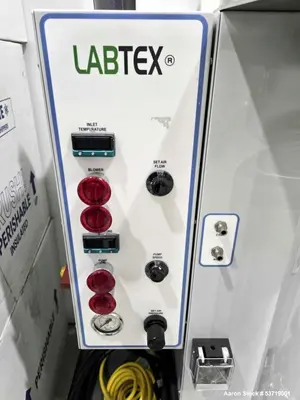

Integrated control panel
Ancillary spare parts & accessories
Features:
Compact bench-top design with full drying capability
Stainless steel atomizer for clean and corrosion-resistant performance
Precise temperature control up to 392°F
Efficient drying of fine powders, slurries, and nanosuspensions
Integrated blower, heater, cyclone, and control system
Ideal for research, product development, and material testing
Capable of handling aqueous or solvent-based feedstocks
Easy-to-clean modular components for quick turnaround between batches
Applications:
Nanoparticle drying (e.g., SiO₂, TiO₂, ZnO)
Pharmaceutical formulation testing
Nutraceutical and food ingredient processing
Flavor and fragrance encapsulation
Academic and R&D labs
Material science and powder development
Ceramics, pigments, and fine chemical spray drying
What Might This Be Used For?
Developing and testing powdered formulations or active ingredients
Spray drying colloids, suspensions, or fine particle dispersions
Producing micron- or submicron-sized powders from liquid feed
Creating research-grade powders for pharmaceutical or food applications
Conducting controlled, replicable drying experiments in lab environments
R&D of nanostructured or specialty chemical powders
Running feasibility studies before scale-up to industrial spray dryers
