| # Axis | 5 | 5 |
| Swing | 22.83" | 579.88 mm |
| Machining Length | 20.08" | 510.03 mm |
| Bar Capacity | 2.7" | 68.58 mm |
| Power | 35 hp | 26.1 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Turning Dia | 12.6" | 320.04 mm |
| Tailstock | No | No |
| Control | CNC (Fanuc 18i-TB CNC Control) | CNC (Fanuc 18i-TB CNC Control) |
| Dimensions | 155″ X 77″ X 87″ High Approx. | 155″ X 77″ X 87″ High Approx. |
| Weight | 10,782 lbs. Approx. | 10,782 lbs. Approx. |

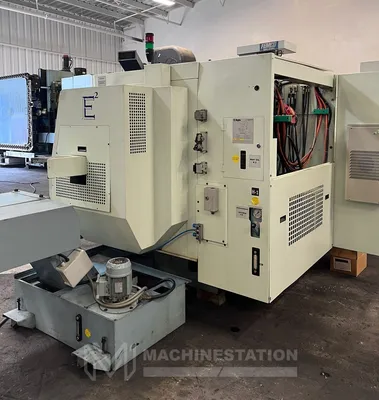

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
Features:
Fanuc 18i-TB CNC Control

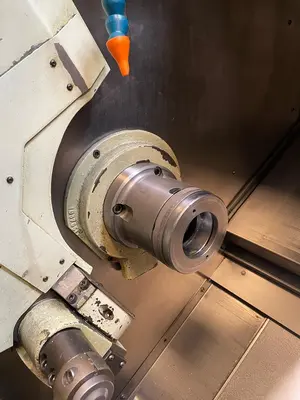

Collet Chuck On Main Spindle (Capable 10″ Chuck)
Collet Chuck On Sub Spindle (Capable 8″ Chuck)
Coolant System
Automatic Lubrication System
Capacity:
Max Turning Diameter : 12.6″
Max Turning Length : 20.08″
Max Swing Over Bed: 22.83″
Max Bar Capacity Main Spindle : 2.7″
Travels:
X Axis Travel : 6.7″
Z Axis Travel : 22.0″
W Axis Travel ( Sub Spindle ): 19.3″
C Axis: 360° (0.001°) Both Spindle
Main Spindle:
Main Spindle Nose: A2-6
Main Spindle Bore: 3.15″
Main Spindle Bar Capacity: 2.7″
Main Spindle Speed: 4,000 RPM
Main Spindle Power: 35 HP
Sub Spindle:
Sub Spindle Nose: A2-5
Sub Spindle Bore: 2.17″
Sub Spindle Bar Capacity: 2.7″
Sub Spindle Speed: 5,000 RPM
Sub Spindle Power: 15 HP
Turret:
Turret Capacity: 12 Stations
Live Tool Speed: 4,000 RPM
Live Tools Motor: 5 HP
Turret Index Time: 0.15 Sec.
General:
Power Source: 220v / 50/60 Hz / 3-Phase
Overall Dimensions: 155″ X 77″ X 87″ High Approx.
Weight: 10,782 lbs. Approx.
LNS Super Hydrobar Bar Feeder
Sub Spindle
Servo Controlled Full C-Axis on Both Spindles
12 stations Live Tool Turret
Automatic Tool Presetter
Part Catcher & Conveyor
Rigid Tapping on Both Spindles
Chip Conveyor
