MODEL ........... XL36-50 W/TILT UT90-20SERIAL .......... VW13904-1/1266364-1DATE ............ 2015CAPACITY ........ 2,000 LBS UNIFORM LOADLIFT RISE ....... 36 IN @ 48 SEC (APPROX.)TILT RISE ....... 90° @76 SECONDS (APPROX.)LIFT BELLOWS .... 30"MOTOR ........... 1 HPPOWER ........... 115V, SINGLE PHASECONTROL ......... PUSH BUTTON X2TILT PLATFORMDIMENSIONS ...... 48" X 48"LAGS ............ 44-5/8"LIFT BASE ....... 48-3/8"LIFT PLATFORM ... 48-1/2"TILT ............ 75° WITH LIMIT SWITCHDIMENSIONSHEIGHT (FULLY RAISED) .......................... 98-3/4"HEIGHT (LOWERED) ............................... 69-3/4"PLATEN LEDGE FULL TILT HEIGHT (LIFT RAISED) .... 55-7/16"PLATEN LEDGE FULL TILT HEIGHT (LIFT LOWERED) ... 19-7/16"LOWERED ........................................ 19-1/2"RAISED ......................................... 52" VERTICAL TRAVEL ................................ 36"LIFT TABLE & TILT TABLEDUST SKIRTSMODIFICATION 1: OVERSIZE LIFT PLATFORM (36" X 48-1/2")MODIFICATION 2" OVERSIZE TILT PLATFORM (48" X 48" WITH 48" X 18" PLATEN)

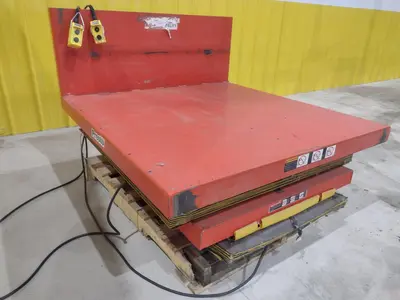

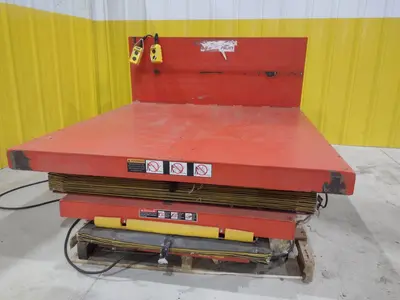

MODEL ........... XL36-50 W/TILT UT90-20
SERIAL .......... VW13904-1/1266364-1
DATE ............ 2015
CAPACITY ........ 2,000 LBS UNIFORM LOAD
LIFT RISE ....... 36 IN @ 48 SEC (APPROX.)
TILT RISE ....... 90° @76 SECONDS (APPROX.)
LIFT BELLOWS .... 30"
MOTOR ........... 1 HP
POWER ........... 115V, SINGLE PHASE
CONTROL ......... PUSH BUTTON X2
TILT PLATFORM
DIMENSIONS ...... 48" X 48"
LAGS ............ 44-5/8"
LIFT BASE ....... 48-3/8"
LIFT PLATFORM ... 48-1/2"
TILT ............ 75° WITH LIMIT SWITCH
DIMENSIONS
HEIGHT (FULLY RAISED) .......................... 98-3/4"
HEIGHT (LOWERED) ............................... 69-3/4"
PLATEN LEDGE FULL TILT HEIGHT (LIFT RAISED) .... 55-7/16"
PLATEN LEDGE FULL TILT HEIGHT (LIFT LOWERED) ... 19-7/16"
LOWERED ........................................ 19-1/2"
RAISED ......................................... 52"
VERTICAL TRAVEL ................................ 36"
LIFT TABLE & TILT TABLE
DUST SKIRTS
MODIFICATION 1: OVERSIZE LIFT PLATFORM (36" X 48-1/2")
MODIFICATION 2" OVERSIZE TILT PLATFORM (48" X 48" WITH 48" X 18" PLATEN)
BrandPRESTO
TypePallet Lift
Stock No.20162
