USED BOWEN

Overview
Manufacturer:
BOWEN
Stock #:
53907001
Status:
For Sale
Description

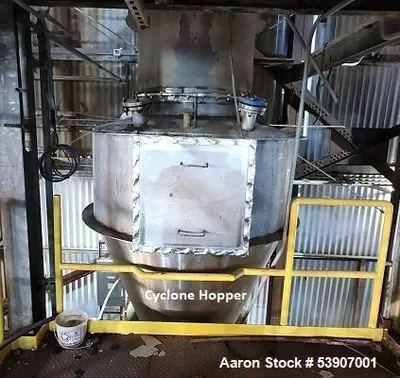

Used Spray Drying Plant including: Bowen 16' Spray Dryer Technical Data: Feed Rate: 3400 lbs/hr, Feed Solids: 50.0%, Feed Temperature: 50F, Evaporation Rate: 1575 lbs/hr, Powder Rate: 1800 lbs/hr, Product Moisture: 5.0%, Inlet Temperature: 430F, Outlet Temperature: 305F, Ambient Temperature: 50F, Plant Elevation: Sea-level, Fuel Consumption: 7.0 MM Btu/hr, Power Consumption: 225 kW. Includes the following: (1) Bowen 16' Spray Dryer, Spray Chamber (CH-1010), Spray Machine (SM-1011), (1) Burner (B-1000), (1) Cyclone (CY-1020), 396-7/16"H x 99" ID (D-46024), (1) Rotary Valve (RV-1021), (1) Rotary Valve Motor (M-1021), (1) Venturi (V-1033), (1) Conveying Fan (CF-1050), (1) Conveying Fan Motor (M-1050), (1) Product Cyclone (CY-1061), 128"H x 30"ID (D-46395), (1) Product Cyclone Hopper 2000 Lb. (PH-1060), (1) Rotary Valve (RV-1062), (1) Rotary Valve Motor (M-1062), (1) Screen (SC-1081), (1) Scrubber Pump (P-1032), (1) Scrubber Pump Motor (M-105), (1) Recirc Tank (L-1031), (1) Wet Scrubber (WS-1030), (1) Main Fan (F-1035), (1) Main Fan Motor (M-103), (1) Duplex Strainer (ST-1072), (1) Water Tank (T1071), (1) Flow Meter (FM-1322), (1) Feed Pump (P-1070), (1) Feed Pump Motor (M-1070), (1) Dryer to Cyclone 36" Duct Assy (D-46390), (1) Cyclone Pot Weldment (D-46025), 122-13/16"H x 69-1/2"ID, (1) Cyclone to Scrubber 36" Duct Assembly (D-46393), (1) Cyclone to Scrubber Duct, Venturi Duct (D-46396), (1) Scrubber to Fan Ductwork - GA (D-46400 & D-46401), Cyclone Explosion Relief Panel Assy (D-46440, -46441, -46442 & -46445), Spray Drying Access Platforms - Framing Plans (8', 13' & 16' Elev.) (D-46459), Spray Drying Access Platforms - Framing Plan (22'-10" Level) (D-46471), Spray Dryer Access Platform - Column & Bracing GA (D-46472 & D-46473), Spray Dryer Access Platform - Framing Plan (26'-3.75" & 28'-2" Levels) (D-46474), Spray Dryer Conveying Duct Venturi (D-46480), Spray Drying Access Platforms - Framing Plan (33'-2" Elev.) (D-46505), Spray Dryer Access Platform - Framing Plan

Specifications

Used Equipment Facts About This Machine
Manufacturer Information:

Manufacturer: Bowen Engineering

Model: 16' Spray Dryer System

Type: Industrial Spray Drying Plant

Condition: Used

Location: Sea-level installation, ready for relocation

Product Description:

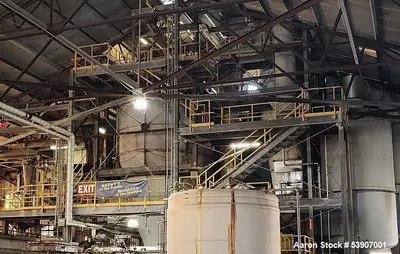

Complete Used Bowen 16' Spray Drying Plant capable of high-capacity powder production. Designed for precision drying with controlled moisture levels and high evaporation rates. This turnkey system includes spray chamber, burner, multiple cyclones, rotary valves, scrubber, pumps, fans, ducting, structural access platforms, and associated motors. Ideal for industrial food, dairy, chemical, or pharmaceutical powder production.

Technical Specifications:

Feed Rate: 3400 lbs/hr

Feed Solids: 50.0%

Feed Temperature: 50°F

Evaporation Rate: 1575 lbs/hr

Powder Output Rate: 1800 lbs/hr

Product Moisture: 5.0%

Inlet Air Temp: 430°F

Outlet Air Temp: 305°F

Ambient Temp: 50°F

Fuel Consumption: 7.0 MM Btu/hr

Power Consumption: 225 kW

Elevation: Sea-level

Included Components:

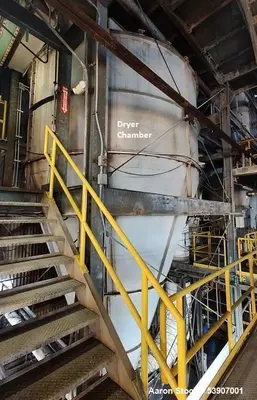

Bowen 16' Spray Dryer (CH-1010, SM-1011)

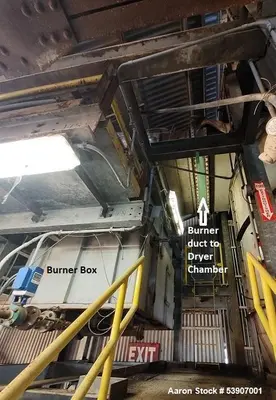

Burner (B-1000)

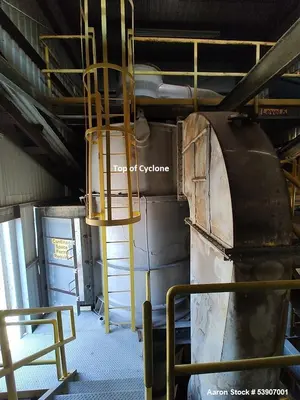

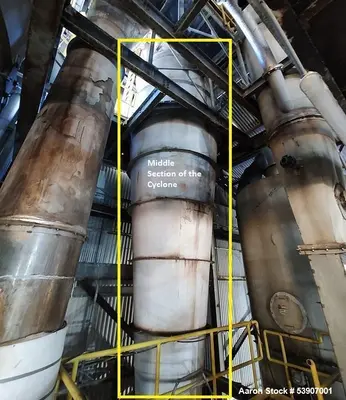

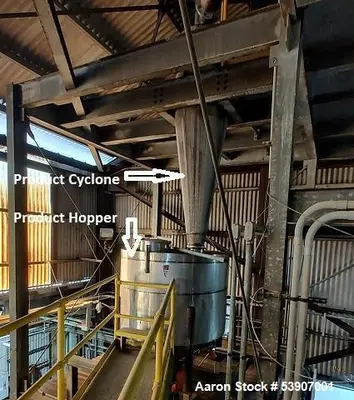

Cyclones (CY-1020, CY-1061)

Rotary Valves & Motors (RV-1021, RV-1062)

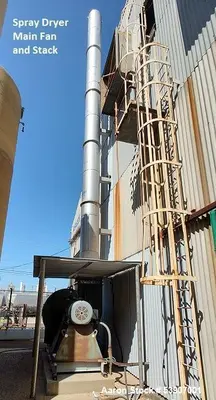

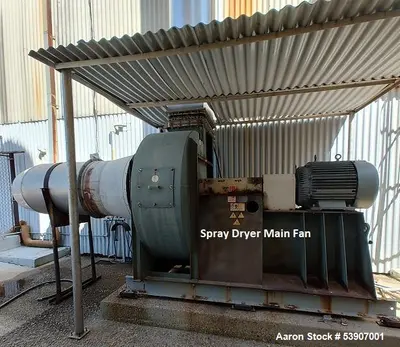

Fans & Motors (CF-1050, F-1035)

Venturi, Ducts & Weldments

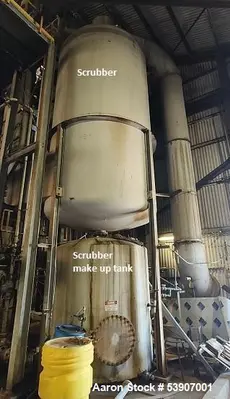

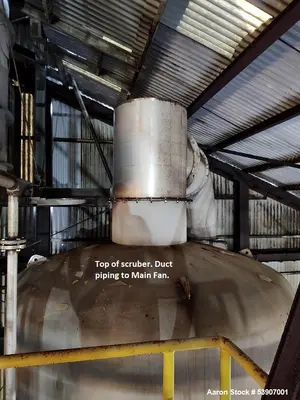

Scrubber Pump System (P-1032, WS-1030)

Feed Pump System (P-1070, L-1031)

Duplex Strainer, Water Tank, Flow Meter

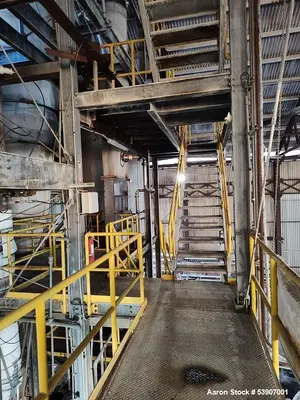

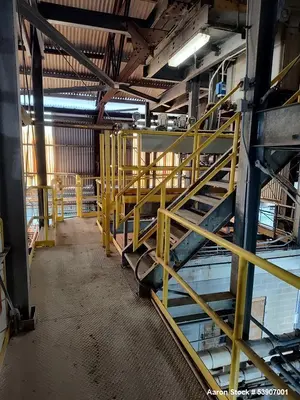

Multiple Access Platforms with Framing Plans

What Might This Be Used For:

Producing milk powder or whey powder

Drying food or flavor additives

Chemical or resin drying processes

Ceramic powder production

Pharmaceutical powders

Feed additive production

Catalyst material processing

Drying of herbal extracts

Powdered detergent manufacturing

Nutritional supplement powder preparation
