USED 2014 BROTHER TC-S2DN

USD $34,500.00
1 available
Overview
Manufacturer:
BROTHER
Model:
TC-S2DN
Year:
2014
Stock #:
13258
Status:
For Sale
Description

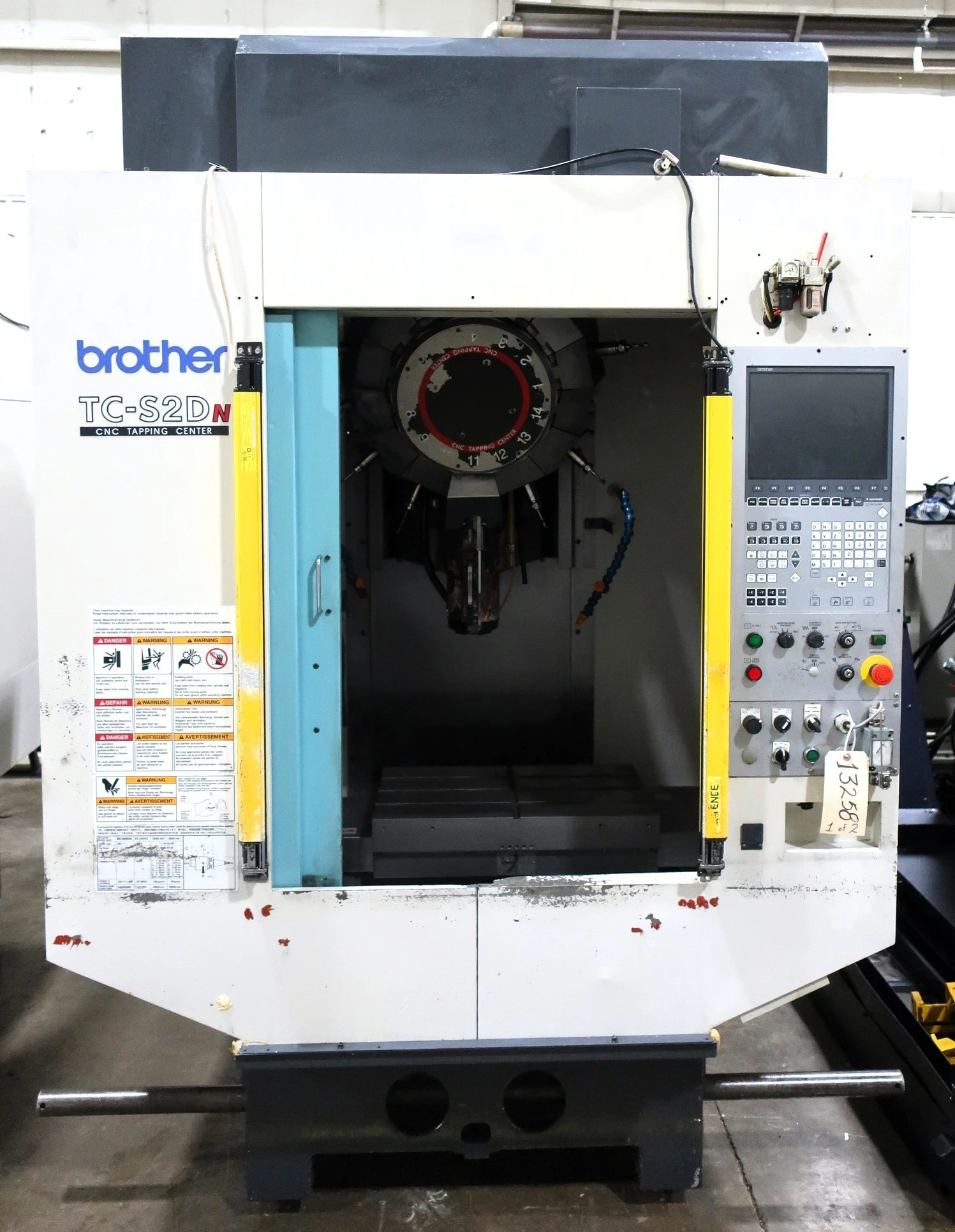

2014 BROTHER TC-S2DN CNC Drill Tap Center: 14 HP, 10K RPM spindle, 14 position ATC, robust 551 lbs table capacity, precise XYZ travel. Includes CNC B00 controls & tool holders. Used, professional-grade.

Specifications
X19.7"500.38 mm
Y15.7"398.78 mm
Z11.8"299.72 mm
Power10.1 kW13.5 hp
RPM10,000 RPM10,000 RPM
# ATC1414
Taper3030

X-Axis Travel 19.7"
Y-Axis Travel 15.7"
Z-Axis Travel 11.8"
Distance Between Table top and Spindle 7.1" to 18.9"
Work area size 23.6" x 15.7"
Max. Table load capacity 551 Lbs.
Spindle speeds 10 to 10,000 RPM
Speed during tapping 6,000 RPM
Spindle Taper BT-30
Spindle Motor 14 HP
Tool Storage Capacity 14
Cutting Feed Rate (X,Y) 04 to 394 IPM
Cutting Feed Rate (Z) 0.4-7.87 IPM
Rapid Traverse Rate 1969 IPM
Floor 81"x 87" x 112"H
Machine weight 5,300 lbs.

Equipped With

CNC B00 Controls
Misc tool holders
Coolant System
10,000 RPM Spindle
14 Position ATC
