CMS ARES-4818-PX5-Z1200 5-Axis CNC Gantry Router (2013). Features X/Y/Z 4800/1800/1200mm, B/C Axis ±120°/±270°, 20HP spindle at 18,000 RPM, 8-tool changer, FANUC 31i-A5 controls, Renishaw TS30 tool setter, vacuum table.
| Table-W | 191.73" | 4,869.9 mm |
| Table-L | 53.34" | 1,354.8 mm |
| Power | 20 hp | 14.9 kW |
| RPM | 24,000 RPM | 24,000 RPM |
| Taper | HSK-63 | HSK-63 |
| # Axis | 5 | 5 |
| X | 188.97" | 4,799.8 mm |
| Y | 70.86" | 1,799.8 mm |
| Z | 47.27" | 1,200.7 mm |
| Control | CNC | CNC |

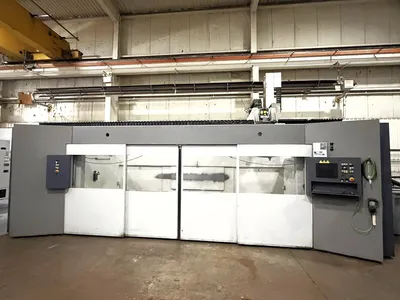

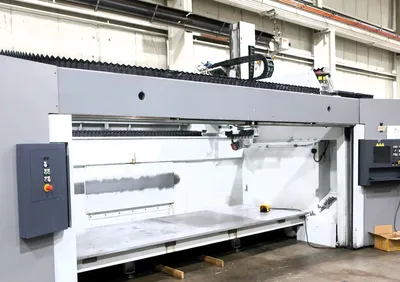

CMS ARES-
4818-PX5-Z1200 5-Axis CNC Aerospace Router Gantry type Milling Machine
Year: 2013
X-AXIS 4800MM 189"
Y-AXIS 1800MM 71"
Z-AXIS 1200MM 47.3"
B-AXIS +-120 DEGREES
C-AXIS +_270 DEGREES
TABLE 192" X 53.3" VACUUM

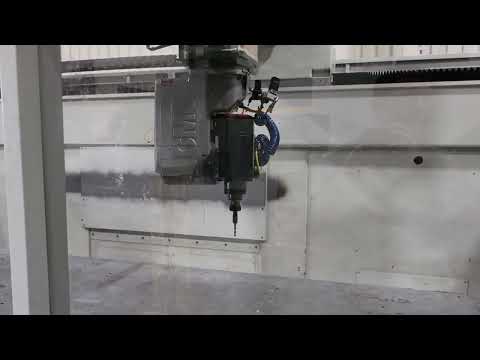

20HP SPINDLE, 18,000RPM
8 POSITION TOOL CHANGER
FANUC 31I-A5 CNC CONTROLS
25 RPM B and C Axis, 18000 Max RPM, 8-Station ATC, HSK 63F Spindle Taper, CMS CNC Controls with Pendant, Renishaw TS30 Tool Setter, Wired for Vacuum Table
Cart With Tool Holders
