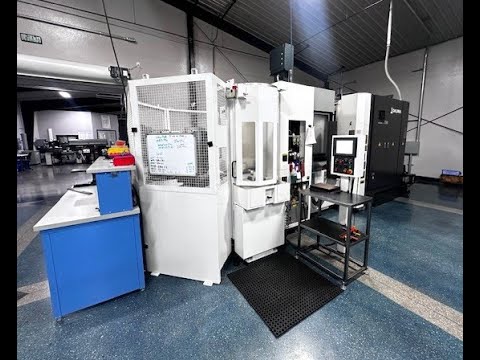

Full 4th, 6 Pallet APC, 15,000 RPM, Coolant Thru Spindle (1,000 PSI), Renishaw Probe, 146 ATC. Well maintained 2016 Okuma MB-4000H Horizontal Machining Center. Machine installed December, 2016. Pallet Pool installed December, 2021. Must see Video.
| PALLET WIDTH | 15.75" | 400.05 mm |
| PALLET LENGTH | 15.75" | 400.05 mm |
| PALLET INDEXING | FULL 4TH | FULL 4TH |
| NUMBER OF PALLETS | 6 | 6 |
| X-AXIS TRAVEL | 22" | 558.8 mm |
| Y-AXIS TRAVEL | 22" | 558.8 mm |
| Z-AXIS TRAVEL | 24.6" | 624.84 mm |
| SPINDLE SPEED | 15,000 RPM | 15,000 RPM |
| SPINDLE MOTOR | 40 hp | 29.8 kW |
| SPINDLE TAPER | CAT 40 (BIG PLUS) | CAT 40 (BIG PLUS) |
| TOOL POSITIONS (ATC) | 146 | 146 |
OSP P300 CNC CONTROL
MAYFRAN CONSEP 2000 CHIP CONVEYOR
COOLANT THRU SPINDLE
ATS COOLJET (1,000 PSI)
RENISHAW OMP 400 PROBING
MIST BUSTER 850 MIST COLLECTOR
200 HOUR LUBE TANK
SHOWER COOLANT
TOOL BREAK DETECTION
MESSAGE FUNCTION
MID BLOCK RESTART
1000 COMMON VARIABLES
300 TOOL OFFSETS
200 WORK COORDINATE SETS
4 SPARE M CODES
(6) TOMBSTONES INCLUDED
** ORIGINAL OWNER
** MACHINE CUTTING PRIMARILY ALLOY STEELS (4140, 8620) & ALUMINUM
** MACHINE INSTALLED DECEMBER, 2016
** PALLET POOL INSTALLED DECEMBER, 2021
** AS OF SEPTEMBER, 2024 - CUTTING TIME HOURS: 12,126
** REPLACEMENT PRICE NEW AS EQUIPPED WITH TOMBSTONES: $580,000+
** IN PLANT, UNDER POWER, READY FOR IMMEDIATE INSPECTION & PURCHASE
