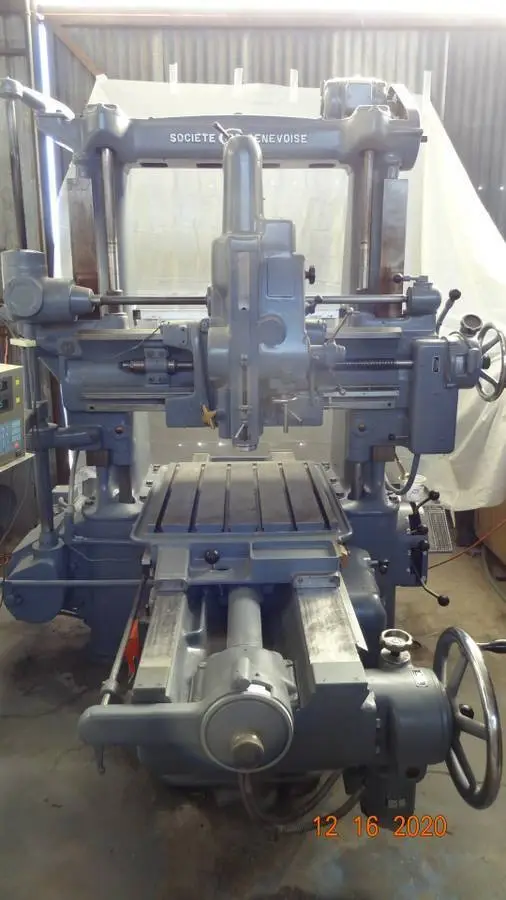

Jig Boring Machine Tool
Manufacturer: SIP, Switzerland
Model: G4
Super Precision Machine. Under Power, New Epoxy Paint. All fluids emptied and replaced with new fluids.
This is a great machine for a start up shop or existing shop. High Precision Sip Jig Borer #4 Manufacturer: SIP of Switzerland This is a beautiful extremely well maintained Sip #4 Jig Bore.
The coordinate readings of this machine are accurate to 0.00005 in. (50 millionths of an inch.) On the micrometer heads and guaranteed accuracy of positioning over entire Travel of the work table and the spindle head travel to: 100 millionths of an inch. = (0.0001)
| Weight | 9,000 LBS | 9,000 LBS |
Table Size: 27.50" x 23.625"
Table X – 24.00
Spindle Y – 20.00
Spindle quill travel: 7"
Max. Pass between Table & Spindle End: 31.5"
Free Pass Between Machine Columns: 34.250"
Twenty (20) Spindle Speeds: 50 - 2000 RPM
Six (6) power feeds in either direction: 0.001 - 0.120 in/rev
Power required: 220 / 230/ VAC 3PH VAC
Max. Table Load: 1100 lbs.
Machine Weight: 9000 lbs.
Rotary table
Circular Dividing Table PD – 4
Diameter ------------------- 17 ¾
Height ----------------------6 - 9/16
Reading ------1 second of an arc
Special Guiding Arm
This arm is to support small diameter drills and end mills
with bushings
Mitutoyo DRO
PM-L series 164
Accurate to 50 millionths of an inch.
1 Box of tools
1 Precision Wohlhaupter facing & boring head
1 each Albrecht Drill Chuck
4 each Precision Micrometer boring heads
6 each solid end mill holders
2 each end mill collet holders with collets
Plus miscellaneous wrenches and oilers
I have all original manuals
