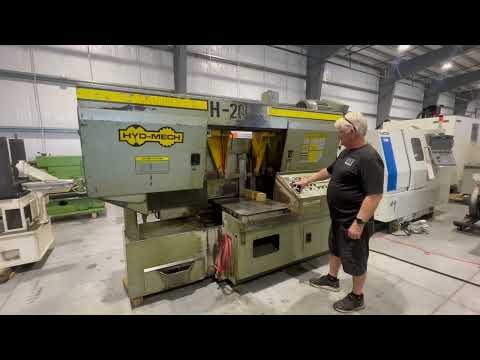

HYD-MECH H-20A Automatic Horizontal Band Saw 2002’
| Rect-Cap (H) | 20" | 508 mm |
| Rect-Cap (W) | 20" | 508 mm |
| Rounds-Cap | 20" | 508 mm |
| Square-Cap | 20" | 508 mm |
| Power | 10 hp | 7.5 kW |
| Type (Auto, Manual, Semi) | Auto | Auto |
| Blade Width | 2" | 50.8 mm |
| Blade Length | 264" | 6,705.6 mm |
| Dimensions | 140” x 95” x 94” H | 140” x 95” x 94” H |
| Weight | 12500 Lbs. | 12500 Lbs. |
HYD-MECH H-20A Automatic Horizontal Band Saw 2002’ #6849
Reference #6849
Model # H-20A
Serial # C0294017H
Year of manufacture- 2002’
Capacity- 20” x 20”
Blade size- 22’2” x 2” x .063”
Blade speeds- 40 – 300 S.F.M.
Blade wheel diameter- 27”
Shuttle stroke- 0 – 36”
Table height- 31”
Maximum work load- 15,000 Lbs.
PLC Control with programmable cuts
Carbide blade guides
Chip auger
Coolant system 10-1/2 Gallon capacity
10 H.P. Blade drive
3 H.P. Hydraulic tank & Pump
Machine is wired for 240 volt / 3 phase / 60 H.Z.
Machine weight- 12,500 Lbs.
Machine dimensions- 140” x 95” x 94” H
Machine location- F.O.B. Sarasota, Florida
