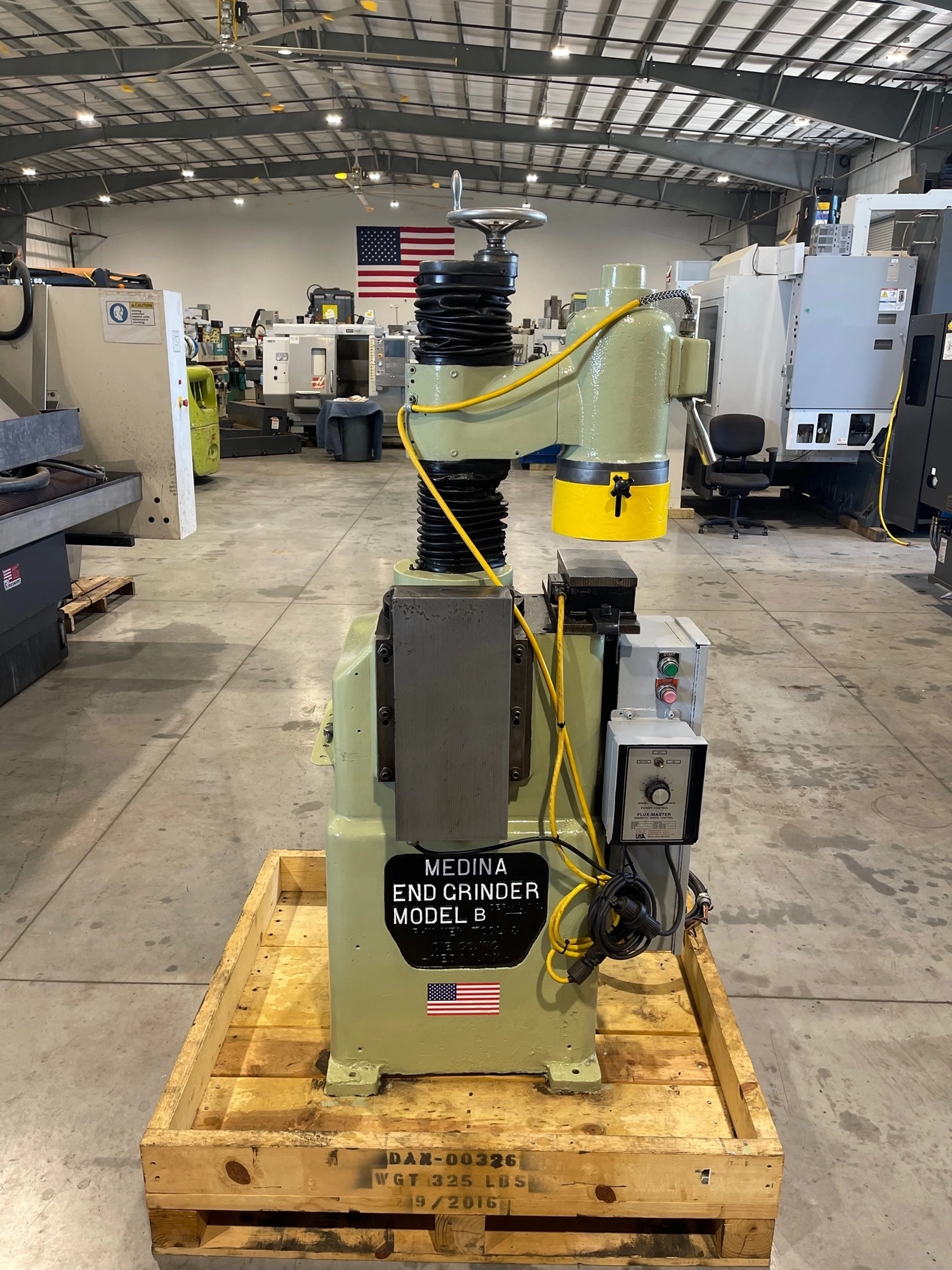

MEDINA Model B Swivel Vertical End Grinder USA
| Dimensions | 24” x 24” x 68” H | 24” x 24” x 68” H |
| Weight | 1200 Lbs. | 1200 Lbs. |
MEDINA Model B Swivel Vertical End Grinder USA #6879
Reference #6879
Model # Model # B
Serial # 334
Grinding capacity- 1” x 20” x 46”
Length- 2” x 17-1/2” x 46” L
Length- 3” x 14-1/2” x 46”
Length- 4” x 10-1/2” x 46”
Height from floor to face of wheel- 46”
Horizontal chuck- 5” x 10”
Vertical chuck- 8” x 18”
Grinding wheel size- 7” x 3” x 1-1/4” Bore
Down feed graduations- .001”
5” x 10” Electromagnetic chuck
8” x 18” Electromagnetic chuck
FLUX-MASTER Electromagnetic chuck controller
3 H.P Spindle motor 220/ 440 volt
Machine is currently wired for 440 volt
Machine weight- 1200 Lbs.
Machine dimensions- 24” x 24” x 68” H
Machine location- F.O.B. Sarasota, F.L.
