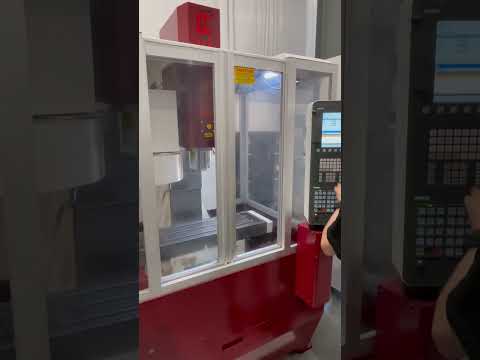

FRYER CM-15 CNC Vertical Machining Center 2017’
| X axis | 15" | 381 mm |
| Y axis | 10" | 254 mm |
| Z axis | 12" | 304.8 mm |
| Power | 5 hp | 3.7 kW |
| RPM | 8,000 RPM | 8,000 RPM |
| Table-W | 10" | 254 mm |
| Table-L | 32" | 812.8 mm |
| Dimensions | 55” x 52” x 80” H | 55” x 52” x 80” H |
| Weight | 2500 Lbs. | 2500 Lbs. |
FRYER CM-15 CNC Vertical Machining Center 2017’ #
Reference #6999
Model # CM-15
Serial # 22023
Year of manufacture- 2017’
X axis travel- 15”
Y axis travel- 10”
Z axis travel- 15”
Table size- 10” x 32”
Table load capacity- 350 Lbs.
Tabel top- 32”
Spindle motor- 60 – 8,000 R.P.M.
Spindle taper- CAT-40
Spindle nose to table- 4” min /19” max
Spindle center to column- 11”
Tool Changer- 8 tool capacity
Rapid traverse- 500 I.P.M.
Cutting feed rate- 0.001 – 400 I.P.M.
X,Y,Z Axis thrust- 2,200 Lbs.
***Machine came out of a Tech School***
SIEMENS 828 CNC Control
Coolant reservoir 10 gallons
7.5 H.P. Spindle motor
Machine is wired for 230 volt / 3 phase / 60 H.Z.
Machine weight- 2,500 Lbs.
Machine dimensions- 55” x 52” x 80” H
Machine location- F.O.B. Sarasota, Florida
