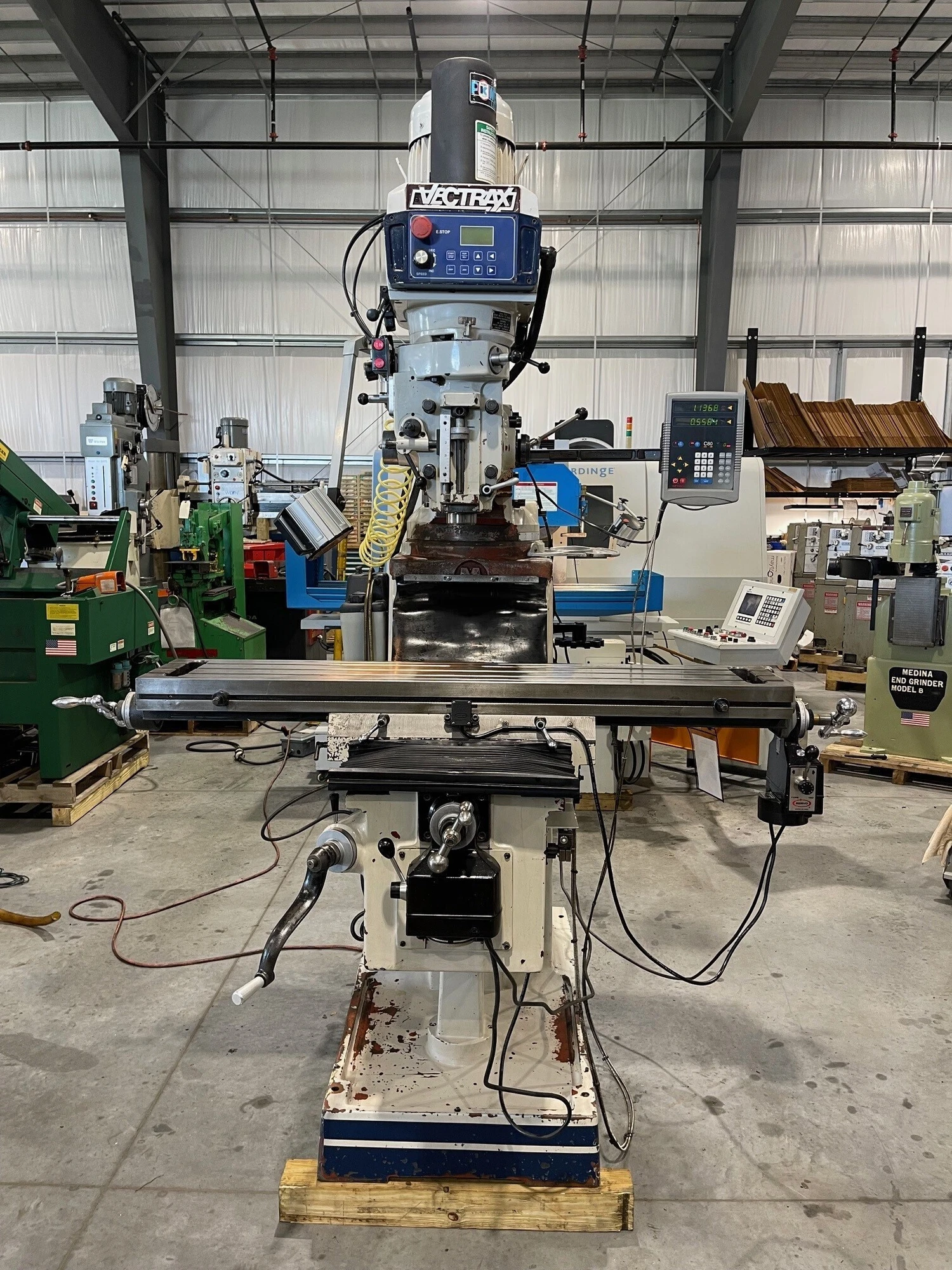

VECTRAX GS20F Vertical Milling Machine 5HP EVS DRO 2010’
| Table-W | 10" | 254 mm |
| Table-L | 54" | 1,371.6 mm |
| Power | 5 hp | 3.7 kW |
| RPM | 5,000 RPM | 5,000 RPM |
| Dimensions | 65” x 70” x 96” H | 65” x 70” x 96” H |
| Weight | 3,000 Lbs. | 3,000 Lbs. |
VECTRAX GS20F Vertical Milling Machine 5HP EVS DRO 2010’ #7045
Model # GS-20F
Serial # 8860260F
Year of manufacture- 2010’
Table size- 10” x 54”
Longitudinal travel- 32”
Cross travel- 16-1/2”
Knee travel- 17-1/2”
Quill travel- 5”
Quill diameter- 3.75”
Spindle taper- R-8
Spindle speeds- 50 – 5,000 R.P.M. Infinitely variable
“EVS” Electronic Variable Speed
NEWAL 2 AXIS DRO Digital Read Out
Kurt pneumatic draw bar
Servo Power feeds on X & Y
Spray Mister
Work Light
Collet rack
5 H.P. spindle motor
Machine is wired for 220 volt / 3 phase / 60 H.Z.
Machine weight- 3,000 Lbs.
Machine dimensions- 65” x 70” x 96” H
Machine location-F.O.B. Sarasota, Florida
