Olympia V60L CNC VTL
CNC Vertical Turning Center, VTL, VTC, Live tooled VTL, C axis, Vertical turning center, Fanuc control, ATC
| Table Dia | 59.05" | 1,499.9 mm |
| Swing | 70.86" | 1,799.8 mm |
| Work Ht-U/R | 62" | 1,574.8 mm |
| Power | 29 hp | 21.6 kW |
| RPM | 450 RPM | 450 RPM |
| Control | CNC (Fanuc 180i-T) | CNC (Fanuc 180i-T) |
| Dimensions | 222" x 196" x 140" high | 222" x 196" x 140" high |
| Weight | 58,000 lbs | 58,000 lbs |
Table diameter 66"
Maximum Swing 70"
Standard Turning Diameter 68"
Chuck Diameter 66"
Maximum under rail 70"
Table drive power 5
"X" axis travel 60
No. Of Tools 32
Control mfg. Fanuc
Control model 180i-T
Max. Table speed 350 RPM
Weight 58,000 lbs.
Live milling RPM 2,500
Live spindle taper Cat 50
Cross rail travel 40"
Vertical Ram Travel 40"
Machine, column and rail 180" x 114" x 140 high, 42,000
Elevating mechanism and ATC 105" x 101" x 108" High, 6,000
Control panel, transformer & tooling 6,000 #
Main drive motor 41"x 18"x 28" 1,100#
Hydraulic unit 40"x 40"x 40" 600#
Chip conveyor w/ coolant tank 149"x 52"x 80" 1,560#
leveling pads pallet 24"x 24"x 12" 800#
electrical cabinet 71"x 21"x 79"H 1,200#
Table drive power 50 HP
More VIDEOs Please copy and paste in your browser
https://youtu.be/wiTMd6Oaj1g

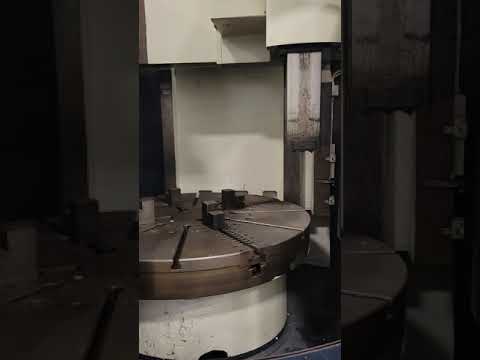

Table 100 RPM and axis moving
Tool change sequence 7-26-2022
https://youtu.be/ecgLx2xQ_kQ
66" Table , 32 ATC, Live milling spindle, Fanuc 180I-T control, coolant through Block/Tool, Touch Tool Measuring, 16 tool blocks included
