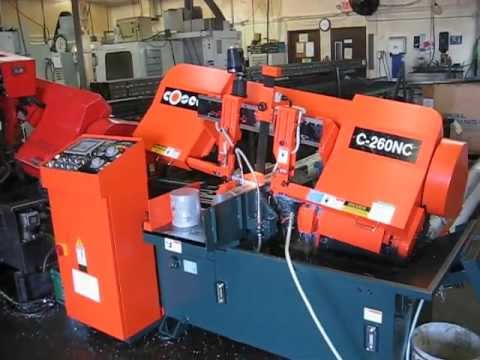

Cosen C-260NC Fully Automatic Bandsaw
Cosen fully automatic horizontal bandsaw, Cut-off saw, Production saw, wet saw, NC saw
Round Cutting Capacity 10.2"
Rectangle Cutting Capacity 10.2" x 11.8"
Saw Blade Dimensions 1-1/4" X 12' X .043"
Blade Speed 66-328 FPM
Main Motor, Saw blade 5 H.P.
Hyd. Pump Motor 1 H.P.
Coolant Pump Motor 1/8 H.P.
Job storage up to 100 jobs
Single index stroke 0-15.9"
Multiple stroke indexing up 999 with auto Kerf comp.
Weight 3,080 lbs.
power 230V, 3 phase, 60 cycle
floor space 85" x 86" x 60.2"
Bed height 28.37"
Warranty 1 year parts and labor
Full stroke vises & double retracting vise $ 3,495.00 NO CHARGE
Variable vise pressure control system $ 1,295.00
Hydraulic powered chip auger $ 2,295.00 NO CHARGE
Hydraulic top clamps for machine and index vises $ 2,295.00
Heavy duty roller table 5' $ 1,795.00 NO CHARGE
Heavy duty roller table 10' long $ 2,795.00
Heavy duty roller table 7' w/ vert. rollers $ 1,995.00
change to 440 volt $ 895.00
Buck Boost transformer $ 995.00
SNC-100 5.7" touch screen NC control coupled with Mitshubishi PLC controller allows for fast easy programming of any job.Auto Kerf compensation, " SAVE-A-BLADE" feature which retracts the material 1/8" from the blade at the end of the cut so blade will not rub the material while the saw head retracts, all machine functions are controlled from the operator's station, Heavy duty gear box, oversized hydraulic cylinder, rugged saw frame, Inverter blade drive system, LED blade speed read out, Carbide blade guides, automatic hydraulic blade tension, powered blade brush, Blade life timer, Split vise jaws on front of machine, adjustable fence, additional flushing hose, work light, bi-metal saw blade, tool box and tools and operation & parts manuals One year warranty
