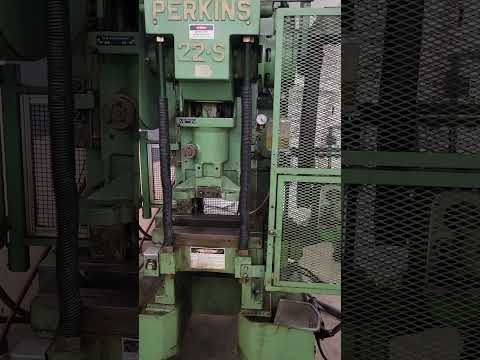

Perkins 22-S Gap Frame Press W/ roll feed
High Speed press, Gap frame, Variable speed, air counter balance, Punch press, Stamping press, High speed production
| Tonnage | 22 T | 19.958 t |
| Dimensions | 52" x 48" x 96" high | 52" x 48" x 96" high |
| Weight | 5,500 lbs. | 5,500 lbs. |
Capacity 22 Tons
Stroke length 1-1/2"
Ram Adjust 2-1/4"
Shut height 7"
Shank size 1-1/2"
Bed area 12" x 22"
Strokes per minute 50-500 ?
Dimensions 52" x 48" x 96" high
machine weight 5,000 lbs.
Variable speed, Drive, Vamco CG6-6 Roll feed, Light curtains, Wintriss load analyzer, Air counter balance, air clutch, air brake, Work area guarding, Dual "inch" & "stroke" buttons, controll panel and auto lube
