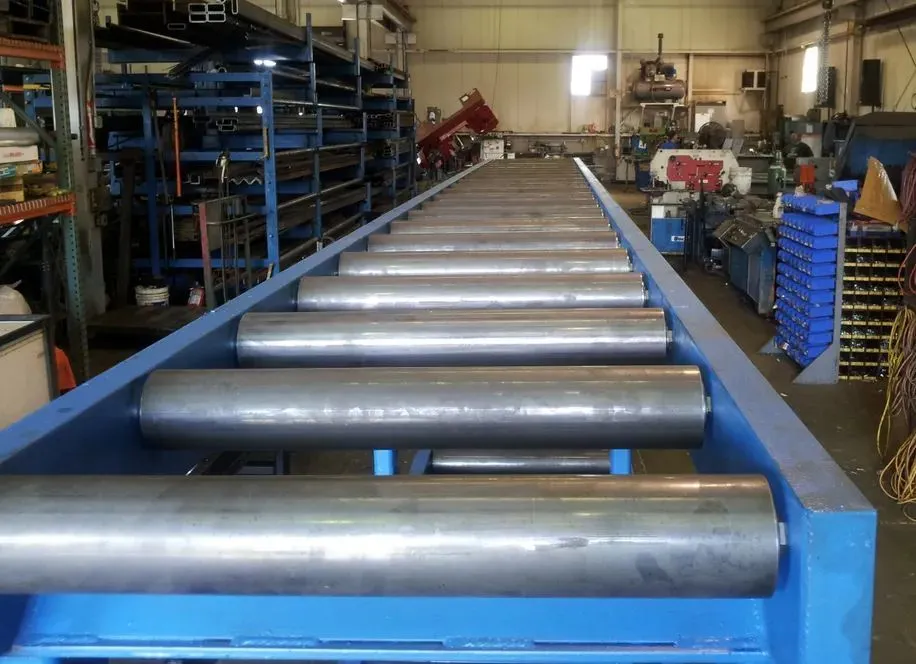

5’ Long Gravity Table
12” OC Roller
24” Usable Face
28” Bed Height
| Width | 24" | 609.6 mm |
| Length | 5' | 1.5 m |
| Dimensions | 5' L | 5' L |
| Weight | 2500 lbs. | 2500 lbs. |
Main Frame:
C6 x 8.2
Structural Tube Wall Legs 2 x 4 x ¼”
Frame Carrying Capacity 10,000/5’
Large Jack Bolt Feet
Roller:
3.5” Structural Tube OD
.300 Wall
Roller Shaft 1-1/16” Hex
Standard Bearing Weight Rating 1300 lb. each
Roller Weight Capacity 2500 lb. each
