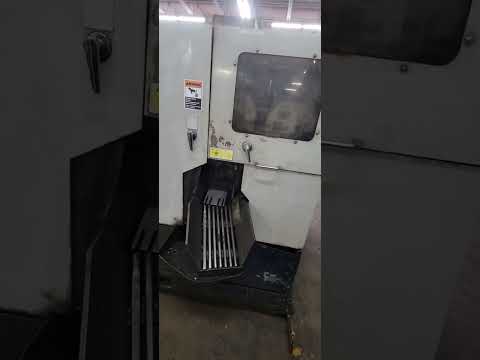

Tsune High Speed Ferrous Cut off saw with Carbide tipped blades, CNC control and 16' bundle loader, NO MIST COLLECTOR
| Control | CNC (GOT 1000) | CNC (GOT 1000) |
| Dimensions | machine = 8' 6" x 7' x 6' high, barfeed = 15' x 5' x 4' 6" high | machine = 8' 6" x 7' x 6' high, barfeed = 15' x 5' x 4' 6" high |
| Weight | 7,850 lbs. | 7,850 lbs. |
Capacity .6" to 4.33" Steel
Carbide cap. Solid steel .98" to 3"
Capacity cutting round tube 5.12"
Square tube .6" to 4.33"
Carbide saw diameter 360mm/ 14"
HSS saw diameter 420mm/16.5"
Saw head feed type Hydraulic
Material feed one stroke 24"
Shortest cut off (Part length) .4"
Remnant length 3.3"
Blade speeds 12-120 RPM
Loading magazine Incline type
max bar length 20'
Main Saw motor 15 HP
Coolant tank capacity 38 Gallons
Operating Dimensions 305" x 84" x 76" High
Weight 7,850 Lbs.
Shipping Dimensions
machine = 8' 6" x 7' x 6' high
barfeed = 15' x 5' x 4' 6" high
Full CNC Control, NEW Carbide saw blade, new Carbide Vise jaws and blade guides as needed, New or reconditioned control, load meter, Chip conveyor, 20' Magazine bar loader, Vertical clamping, Chip brush, Material end separation chute and all available manuals
