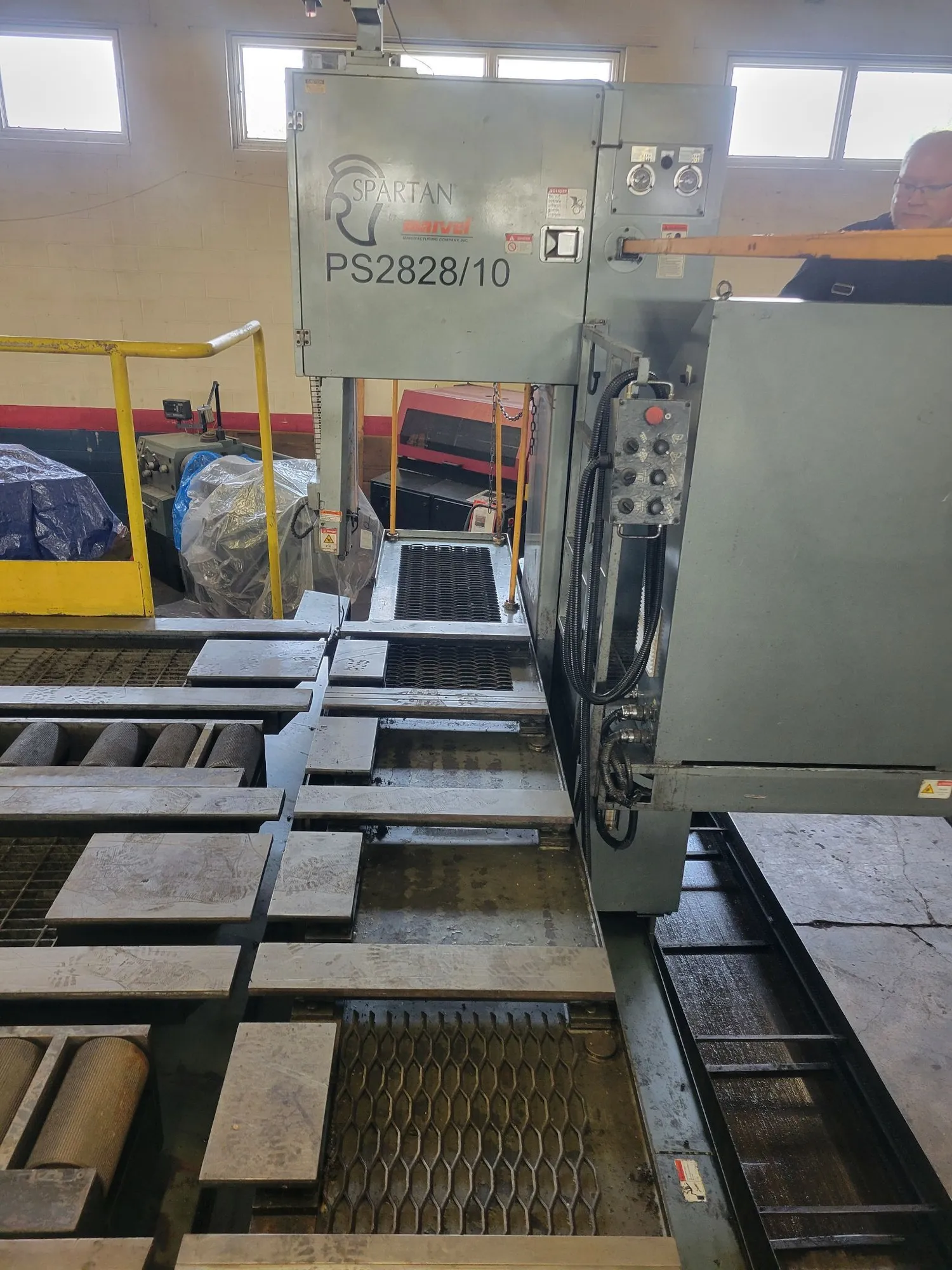

Marvel/Spartan PS2828/10 Plate Saw
| Thickness | 27.5" | 698.5 mm |
| Cut-Width | 118.1" | 2,999.7 mm |
| Dimensions | 27.5” x Height x 27.5' Width x 118" high | 27.5” x Height x 27.5' Width x 118" high |
| Weight | 30,500 lbs | 30,500 lbs |
Blade Size- 2” x .063” x 22’ 3.75”
Speed- 50-250 fpm (15-75 m/min.)
Feed Rate: .080-20”/m (2-500 mm/min.)
Motors:
Blade Drive 7.5 H.P. (5.5 KW)
Hydraulic Pump 2 H.P. (1.5 KW)
Coolant Pump 1 H.P. (0.7 KW)
Movement via hydraulic cylinder on ground square ways.
Hydraulically clamped carbide blade guides with hydraulic controlled upper blade guide arm
Space Saving Moveable Saw Head
Saw Head Travels on Ground Square Ways
Built In Positioning Scales on Inner Table
Hydraulically Positioned Guide Arm
Hydraulic Blade Tension
Hydraulic Movement of Saw Head
Rapid Approach and Return of Saw Head
Motion Detector for Blade Breakage or Stalling
Hydraulic Blade Feed with Compensation Valve
Work Light
Hydraulically Clamped Tungsten Carbide Blade Guides
Powered Chip Brush
Independent Control Panel
Inverter Controlled Blade Speeds
Flushing Hose
