Heavy duty HTC Hydraulic 1/2" x 12' Shear capable of 3/4" with sharpe blades and FULL rake angle of blade,
| Max Thickness | 0.5" | 12.7 mm |
| Length of Blade | 148" | 3.8 m |
| Hyd/Mech | Hyd | Hyd |
| Back Gauge | 36" | 914.4 mm |
| Power | 30 hp | 22.4 kW |
| Dimensions | 172" X 91" X 108' high | 172" X 91" X 108' high |
| Weight | 32,500 lbs. | 32,500 lbs. |

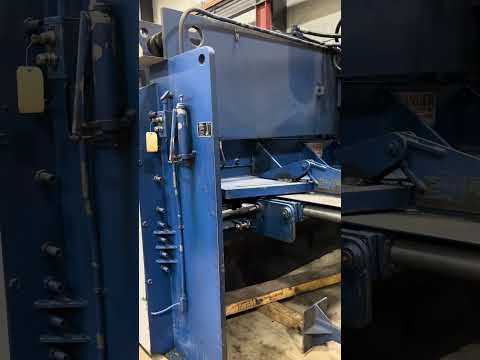

Manufacturer HTC 12' x 1/2" Hydraulic Plate Shear
Model 500-12 AHC
Condition Used
Serial Number A10761020
Stock Number 10680
Capacities 1/4" x 12' @ .375"/foot rake
Capacities2 1/2" x 12' @ .5"/foot rake
Capacities3 Up to 3/4" w/sharp blades & max rake
Cutting length 148"
Number of hold downs 19
Front operated power backgauge 36"
Motor 30 HP, 230/460, 3 PH
Dimensions 172"L-R x 91" F-B x 108" Tall
Weight 32,500 LBS
36" Power front operated back gauge, Ball transfer table
Squaring arm
Extra set of blades
