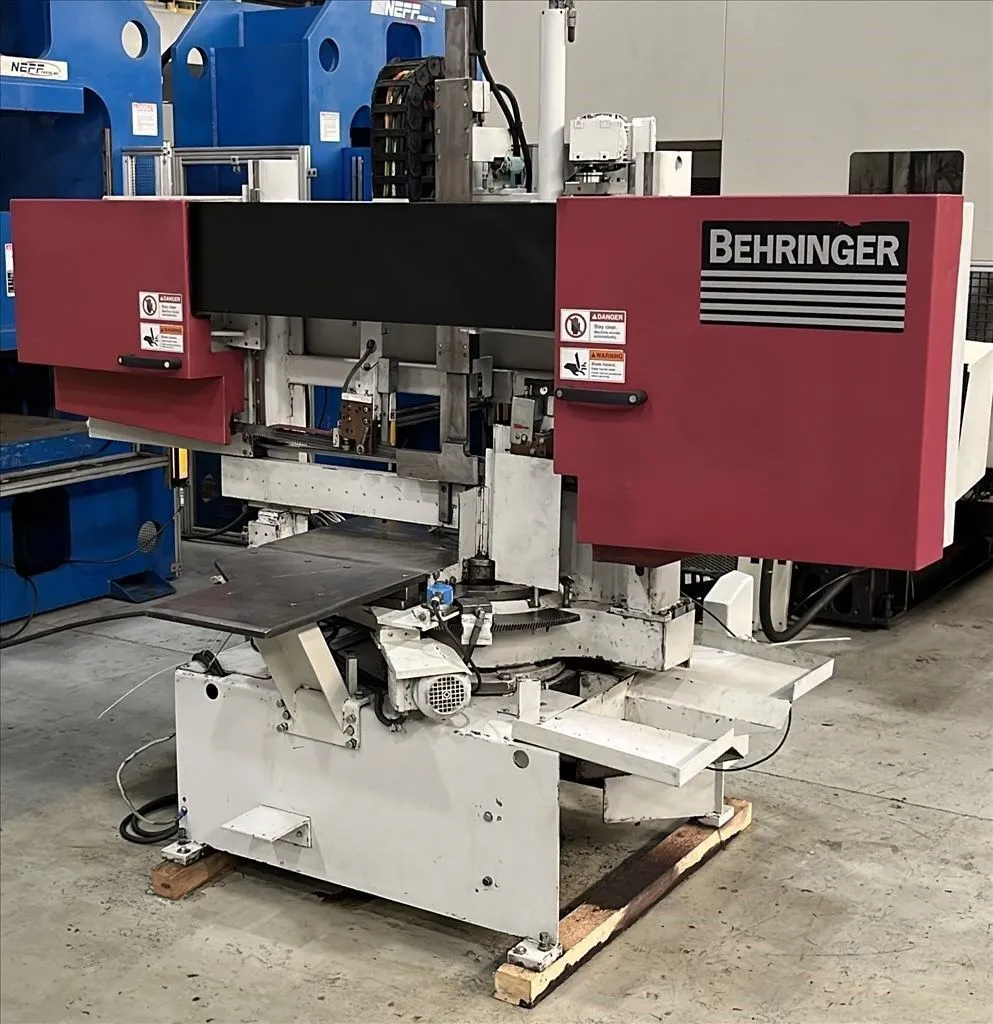

BEHRINGER HBE320-523GA AUTOMATIC MITRE BANDSAW
| Rect-Cap (H) | 12.6" | 320.04 mm |
| Rect-Cap (W) | 20.4" | 518.16 mm |
| Rounds-Cap | 12.6" | 320.04 mm |
| Power | 5 hp | 3.7 kW |
| Type (Auto, Manual, Semi) | Auto | Auto |
| Blade Width | 1.25" | 31.75 mm |
| Blade Thickness | 0.042" | 1.0668 mm |
| Blade Length | 209" | 5,308.6 mm |
90° (Round): 12.6"
90° (Rectangle): 20.4" x 12.6"
75° Left (Round): 12.6"
75° Left (Rectangle): 20.4" x 12.6"
60° Left (Round): 12.6"
60° Left (Rectangle): 18.5" x 12.6"
45° Left (Round): 12.6"
45° Left (Rectangle): 7.8" x 12.6"
30° Left (Round): 7.8"
30° Left (Rectangle): 7.8" x 12.6"
75° Right (Round): 12.6"
75° Right (Rectangle): 19.2" x 12.6"
60° Right (Round): 12.6"
60° Right (Rectangle): 16.5" x 12.6"
45° Right (Round): 12.6"
45° Right (Rectangle): 12.9" x 12.6"
Minimum (Round): 0.78"
Minimum (Rectangle): 0.78" x 0.78"
Saw Blade Dimensions: 17’5" x 1-1/4" x .042"
Stroke of Feeding Gripper: 118"
Minimum Remnant Length: 5.9"
Working Height: 31.5"
Cutting Speed: 49 - 360 SFM
