| # Axis | 5 | 5 |
| Swing | 9" | 228.6 mm |
| Machining Length | 38.5" | 977.9 mm |
| Bar Capacity | 2.6" | 66.04 mm |
| Power | 30 hp | 22.4 kW |
| Max RPM | 5,000 RPM | 5,000 RPM |
| Turning Dia | 9" | 228.6 mm |
| Tailstock | No | No |
SWING OVER BED 9.05"
MAX CUTTING DIAMETER 9.05"
MAX CUTTING LENGTH 9.1"
DISTANCE BETWEEN CENTERS 38.5"
X-AXIS TRAVEL 6.5"
Y-AXIS TRAVEL 3.93"
Z-AXIS TRAVEL 27.5"
C-AXIS INDEXING 600 RPM
BAR CAPACITY 2.625"
SPINDLE NOSE A2-6
SPINDLE MOTOR 30 hp
SPINDLE SPEED 5,000 RPM
RAPID TRAVERSE RATE - X-AXIS 787 in/min.
RAPID TRAVERSE RATE - Y-AXIS 295 in/min.
RAPID TRAVERSE RATE - Z-AXIS 1,575 in/min.
SUB SPINDLE Yes
SUB SPINDLE - BAR CAPACITY 2.625"
SUB SPINDLE - SPINDLE NOSE A2-6
SUB SPINDLE - SPINDLE MOTOR 30 hp
SUB SPINDLE - SPINDLE SPEED 5,000 RPM
TURRET 2 - X-AXIS TRAVEL 7.5"
TURRET 2 - Z-AXIS TRAVEL 28.3"
TURRET CAPACITY (STATIONS) 12
TURRET TYPE BMT55
LIVE MILLING Yes
LIVE MILLING SPEED 5,000 RPM
LIVE MILLING MOTOR 7.5 hp
TURRET 2 CAPACITY (STATIONS) 12
Y-AXIS Yes

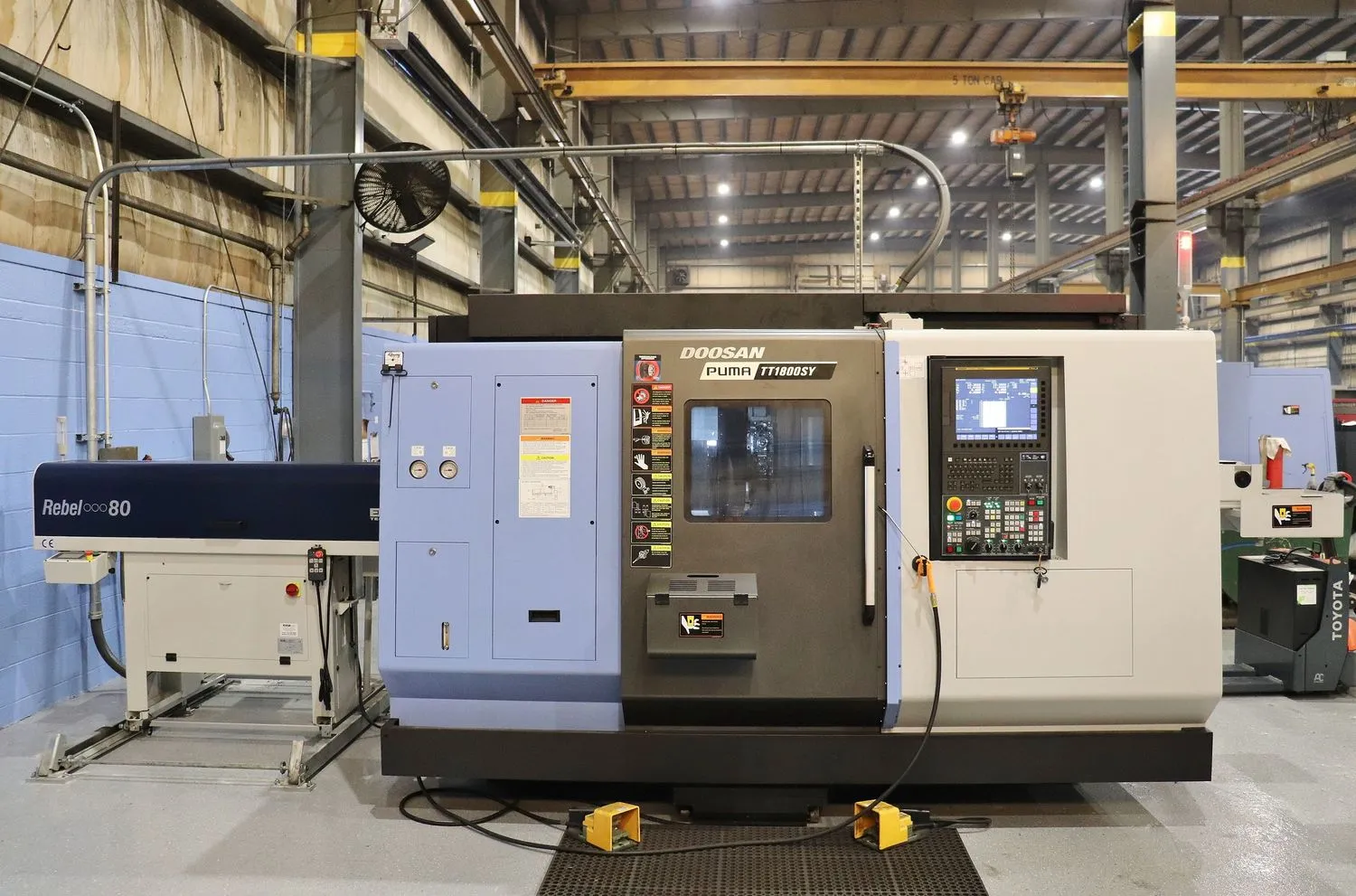

FANUC OiTP CNC CONTROL W/DOOSAN EZ GUIDE i CONVERSATIONAL PROGRAMMING
SET UP FOR UNLOADING OF PART THROUGH SUB HEADSTOCK (SEE BELOW UNLOADER FOR SEPARATE SALE)
Y-AXIS ON UPPER TURRET
FULL C-AXIS ON MAIN AND SUB-SPINDLES
MISC LIVE AND STATIC HOLDERS
PARTS CATCHER (MAIN)
PROGRAMMABLE PARTS UNLOADER/CONVEYOR (SUB)
TURBO REAR DISCHARGE CHIP CONVEYOR ($16,850 OPTION)
145 PSI COOLANT PUMS FOR UPPER AND LOWER TURRETS ($4,400 OPTION)
EDGE TECHNOLOGIES REBEL 80SE SERVO BARLOADER ($24,800 OPTION)
TOOL SETTER
3 COLOR TOWER LIGHT
WAY LUBE OIL SKIMMER
SOLID BOX WAY CONSTRUCTION ON HEAVY DUTY ONE-PIECE MEEHANITE CAST IRON BED
ROYAL QG65 COMPACT COLLET CHUCKS ON BOTH LEFT AND RIGHT SIDE($8,000 OPTION)
AUTO DOOR ($8,900 OPTION)
AVAILABLE FOR SEPARATE SALE:
EDGE TECHNOLOGIES REBEL 80 UNLOADER ($53,000 OPTION WITH BELOW EQUIP):
- RIGHT SPINDLE LINER - EXTENDED TYPE - 2.380" DIA.
- X-AXIS AXIAL SHIFT
- (1) PUSHER LENGTH FOR PART VARIANCE W/RUBBER ID GRIPPER
- EXTENDED V-TRAY TO REACH BACK OF RIGHT-SPINDLE
- COOLANT PAN IN V-TRAY AREA FOR EXCESSIVE COOLANT
- AIR BLOW TO REDUCE COOLANT AND CHIPS IN FINISHED PART
- LADDER MODIFICATION AND SECONDARY BARFEED INTERFACE & E-STOP CIRCUIT
HOURS OF MACHINE AS OF 3/3/2020:
- UPPER:
* RUN TIME; 127 HOURS
* CUTTING TIME: 46 HOURS
- LOWER
* RUN TIME: 128 HOURS
* CUTTING TIME: 22 HOURS
** MACHINE IS CURRENTLY IN PLANT, INSTALLED JANUARY 2021, BARELY USED
** TOTAL VALUE WHEN PURCHASED NEW: $353,000
** AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
