MORI SEIKI NHX4000 CNC Horizontal Machining Center, 2012: 20k RPM, CAT40, 40 ATC, CTS. Comes with Blum tool and part probes, chip conveyor, Trimist collector. Formerly used by a leading medical firm.
| X | 22" | 558.8 mm |
| Y | 22" | 558.8 mm |
| Z | 26" | 660.4 mm |
| Power | 40 hp | 29.8 kW |
| RPM | 20,000 RPM | 20,000 RPM |
| # ATC | 40 | 40 |
| Taper | CAT 40 | CAT 40 |
| Pallet-W | 15.7" | 398.78 mm |
| Pallet-L | 15.7" | 398.78 mm |
| Dimensions | 107" x 166" x 99" H | 107" x 166" x 99" H |
| Weight | 17,000 Lbs | 17,000 Lbs |
Specifications (subject to buyer verification):
Pallet Size: 15.7" X 15.7" (2)
Pallet Load 880 lbs
Max Workpiece Sweing Diameter 24.8”
Max Workpiece Hight 35”
X-Axis Travel: 22.0"
Y-Axis Travel: 22.0"
Z-Axis Travel: 26"
Distance from Spindle Center – Pallet 3.15” – 25”
Distance from Spin de Nose – Pallet Center 2.8” – 28.7”
Pallet Index: 1 Degree
Spindle Speed: 20,000 RPM
Spindle Taper: CAT40
Spindle Motor: 24.7 / 20 / 15 HP (10 min/30min/cont.)
Tool Capacity: 40 ATC
Tool Diameter 2.76” / 6.7”
Tool Length 17.7”
Chip to Chip Time 2.8 sec – 7.7 sec
Rapid Traverse Rates: 2,362 IPM
Floor Space 107” x 166” x 99” (W x d x h)
Machine Weight 16,754 lbs

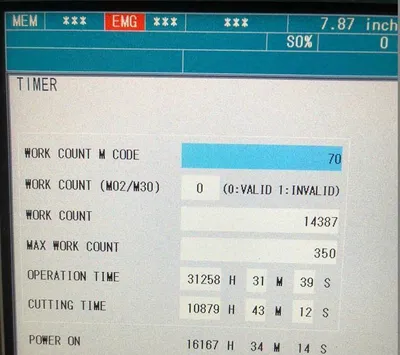

Mori Seiki M730MB (Mitsubishi) CNC Control
40 position tool changer
20,000 RPM Spindle
High Pressure Thru Spindle Coolant @ 1100 PSI - Cooljet
Blum Tool Probe
Chip conveyor
Trimist Mist Collector Unit
Tooling and tombstones
EXCELLENT CONDITION CAME FROM A MAJOR MEDICAL COMPANY
