2004 Fadal VMC 4020 HT CNC with Fanuc 18iMB CNC control, 10K RPM spindle, 24-tool ATC, Cat-40 and Box Ways. Well-maintained, reliable performance for precision machining.
| X | 40" | 1,016 mm |
| Y | 20" | 508 mm |
| Z | 28" | 711.2 mm |
| Power | 22.5 hp | 16.8 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 21 | 21 |
| Taper | CAT-40 | CAT-40 |
| Table-W | 20" | 508 mm |
| Table-L | 48" | 1,219.2 mm |
| # Axis | 3 | 3 |
| Max Table Load | 3641 | 3641 |
| Rapid Traverse | 0 | 0 |
| Dimensions | 117" L (146" w coolant pan) x 79" W x 92" H (119" with Spindle Up) | 117" L (146" w coolant pan) x 79" W x 92" H (119" with Spindle Up) |
| Weight | 11,000 Lbs | 11,000 Lbs |
TABLE WORKING SURFACE ................. 20" X 48"
FLOOR TO TABLE SURFACE ................ 32"
T-SLOTS (# X WIDTH X SPAN) ............ 5 X .709" X 3.75"
MAXIMUM WEIGHT ON TABLE ............... 3,641 LBS.
TABLE TRAVEL, X-AXIS (LONGITUDINAL) ... 40"
TABLE TRAVEL, Y-AXIS (CROSS) .......... 20"
VERTICAL COLUMN TRAVEL (Z-AXIS) ....... 20"
MIN/MAX DISTANCE, SPINDLE NOSE TO TABLE 4"/24"
SPINDLE TAPER ......................... CAT 40
NUMBER OF TOOLS ....................... 30
SPINDLE SPEEDS, TWO GEARED RANGES ..... 10 TO 10,000 R.P.M.
SPINDLE CENTER TO COLUMN WAYS ......... 20"
SPINDLE TORQUE ........................ 169 FT./LBS.
CUTTING FEED RATES, (X,Y, & Z AXES) ... 0.01 TO 400 I.P.M.
RAPID FEED RATE, (X & Y AXES) ......... 900 I.P.M.
RAPID FEED RATE (Z-AXIS) .............. 600 I.P.M.
MAXIMUM TOOL DIAMETER ................. 3"
...W/O ADJACENT TOOLS ................. 6"
MAXIMUM TOOL LENGTH ................... 15"
MAXIMUM TOOL WEIGHT ................... 15 LBS.
APPROX DIMS ........................... 117" x 94" x 100"
APPROX WEIGHT ......................... 11,000 Lbs.
EQUIPPED WITH:

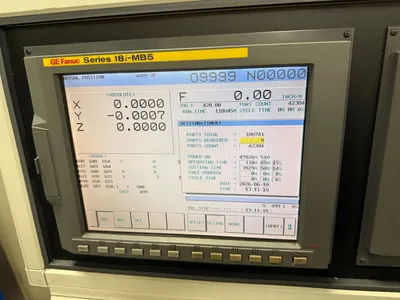

- FANUC MODEL: 18i-MB5 CNC CONTROL
HIGH SPEED CPU
- 10,000 R.P.M. HIGH TORQUE SPINDLE OPTION
- AUTOMATIC TOOL CHANGER (24) STATIONS
- RIGID TAPPING
- BOX WAYS ON ALL AXES
- AC SERVO MOTORS ON ALL AXES
- BIJUR AUTOMATIC LUBRICATION SYSTEM
- EXTERNAL COOLANT PUMP AND TANK
- 24 HORSE POWER AC DRIVE MOTOR
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
