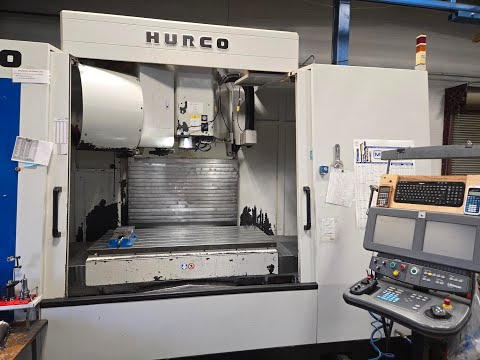

2006 HURCO VMX64/40T CNC Machining Center, 3-Axis, 24HP, 10K RPM, CAT-40, UltiMax Control. Includes load prep. Operational with touchscreen issue.
| X | 64" | 1,625.6 mm |
| Y | 34" | 863.6 mm |
| Z | 30" | 762 mm |
| Power | 24 hp | 17.9 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 24 | 24 |
| Taper | CAT-40 | CAT-40 |
| Table-W | 35" | 889 mm |
| Table-L | 66" | 1,676.4 mm |
| # Axis | 3 | 3 |
| Rapid Traverse Rate | 709 | 709 |
| Max Table Load | 6000 | 6000 |
| Weight | 30,000 Lbs | 30,000 Lbs |
TABLE WORKING SURFACE ................. 35" x 66" / 1,676 x 889mm
MAXIMUM WEIGHT ON TABLE ............... 6,000 LBS.
TABLE TRAVEL, X-AXIS (LONGITUDINAL) ... 64" / 1,625mm
TABLE TRAVEL, Y-AXIS (CROSS) .......... 34" / 864mm
VERTICAL COLUMN TRAVEL (Z-AXIS) ....... 30" / 762mm
SPINDLE NOSE TO TABLE ................. 6" TO 36"
SPINDLE CENTER TO COLUMN .............. 38"
SPINDLE TAPER ......................... CAT 40
NUMBER OF TOOLS ....................... 24
SPINDLE SPEEDS, TWO RANGES ............ UP TO 10,000 R.P.M.
CUTTING FEED RATES, (X,Y, & Z AXES) ... 0.01 TO 530 I.P.M.
RAPID FEED RATE, (X & Y AXES) ......... 709 I.P.M.
RAPID FEED RATE (Z-AXIS) .............. 530 I.P.M.
APPROX SHIPPING DIMS .................. 175" x 114" x 131.9"
APPROX WEIGHT ......................... 30,000 Lbs.
- HURCO MODEL: ULTIMAX CONVERSATIONAL CONTROL
- DUAL ARM SIDE MOUNTED TOOL CHANGER (24) STATIONS
- AC SERVO MOTORS ON ALL AXES
- COOLANT THROUGH SPINDLE
- COOLANT SYSTEM
- 24 HORSE POWER AC DRIVE MOTOR
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
This Hurco is a trade in on a new Hurco. Spindle and Axes all work well. Control works, the touch screen does not.
