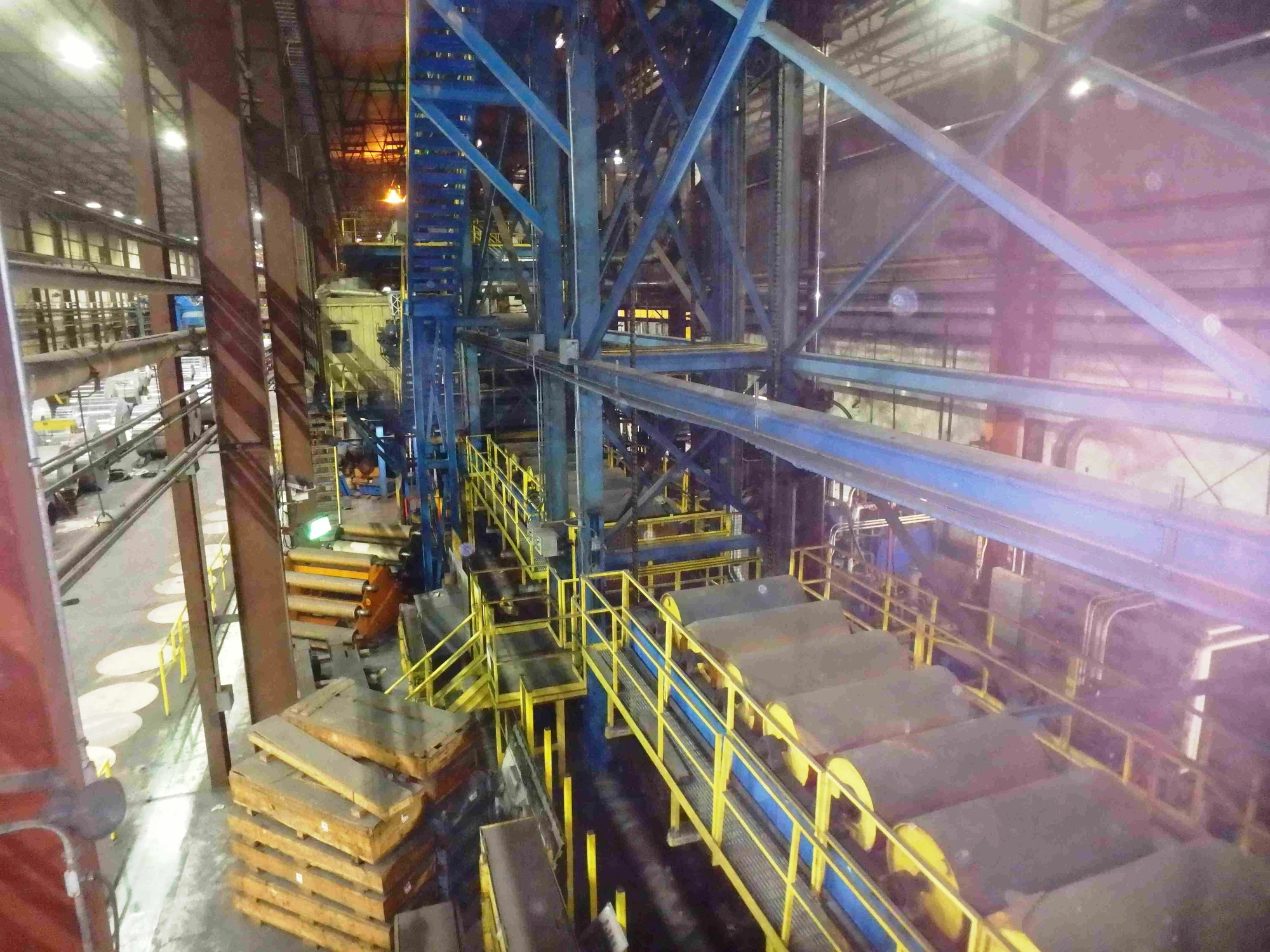

USED 1986 HUNTER 60" COIL COATING LINE

Overview
Manufacturer:
HUNTER
Year:
1986
Stock #:
CC-180
Status:
For Sale
Description

60" complete line / 2 coat system / very nice

Manufacturer:
- Hunter
- New 1986

Material:
- Aluminum

Strip Width:
- 30 - 60”

Strip Thickness:
- .008 - .072"

Coil Size:
- Entry ID = 20/24"
- Entry OD = 96"
- Exit ID = 16/20"
- Exit OD = 96"
- Weight = 50,000 lbs.
- Spools = 20” ID x 22.5” OD x 84” face

Line Speeds
- Typical running speed = 450 fpm
- Design Speed = 125 - 500 fpm
- Entry Section Speed = 125 - 650 fpm
- Exit Section Speed = 125 - 650 fpm
- Thread Speed = 50 - 150 fpm

Horsepowers:
- Uncoilers = 80 hp
- Bridles #1, #2, #3, #3A and #4 = 125 hp
- Recoiler = 150 hp

Line Tensions
- Uncoilers = 1000 Psi
- Entry Accumulator = 1500 Psi
- Ovens = 5500 Psi
- Exit Accumulator = 1500 Psi
- Recoiler = 2000 Psi

EQUIPMENT:

Uncoilers
- Dual units
- Outboard bearings
- 20/24" ID x 96" OD x 50,000 lb. capacity

Shears (Entry and Exit)
- Hydraulic down cut

Bridles
- 2-roll DC driven

Accumulators (Entry and Exit)
- Hydraulic floating type
- 9 rolls over 8
- 30 ft high
- 450 feet of storage

Cleaning & Rinsing
- Caustic cleaning and water rinse

Conversion Coat
- Chemical Dry-in-Place Coater
- Infra-red oven/dryer

Prime Coater
- GFG 3-roll doublehead shuttle type
- DC Driven Motors

Primer Oven
- Organic Film Natural Gas Fired Oven
- Recirculated heat from after burner
- 4 zones

Finish Coater
- GFG 2 Roll Double-head Reverse Roll
- Shuttle heads (4)
- Hydraulic Driven Motors

Finish Oven
- Organic Film Natural Gas Fired Oven
- Recirculated heat from after burner
- 5 zones

Film Thickness System
- Infrared thickness detection system installed

Exit Accumulator
- 9 rolls over 8
- 30 ft high
- 450 ft of strip storage

Steering Unit

Waxer / DOS Coaters (Entry and Exit)
- Roll-type applicator rolls

Bridle #4

Exit Shear

Recoiler
- one unit
- 16-20” ID
- 96" OD
- 50,000 lb capacity

4 Bridle Units total

11 Steering Units total

Control System: GE 90-30 & Series 6 PLC’s
Drives: GE Drives

Sold "as is, where is" EXW on foundation, not in operation. USA
