| X Axis | 30" | 762 mm |
| Y Axis | 20.08" | 510.03 mm |
| Z Axis | 22.05" | 560.07 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 8,000 RPM | 8,000 RPM |
| # ATC | 30 | 30 |
| Taper | 40 | 40 |
| Table-W | 22" | 558.8 mm |
| Table-L | 36" | 914.4 mm |
| # Axis | 3 | 3 |
| Control | CNC (Fanuc) | CNC (Fanuc) |
| Dimensions | 90" x 84" x 111" | 90" x 84" x 111" |
| Weight | 11243 lbs | 11243 lbs |
*All specifications are approximations and are subject to verification. Comes as shown in images. Please give us a call if you have any questions before purchasing. All sales are final.*

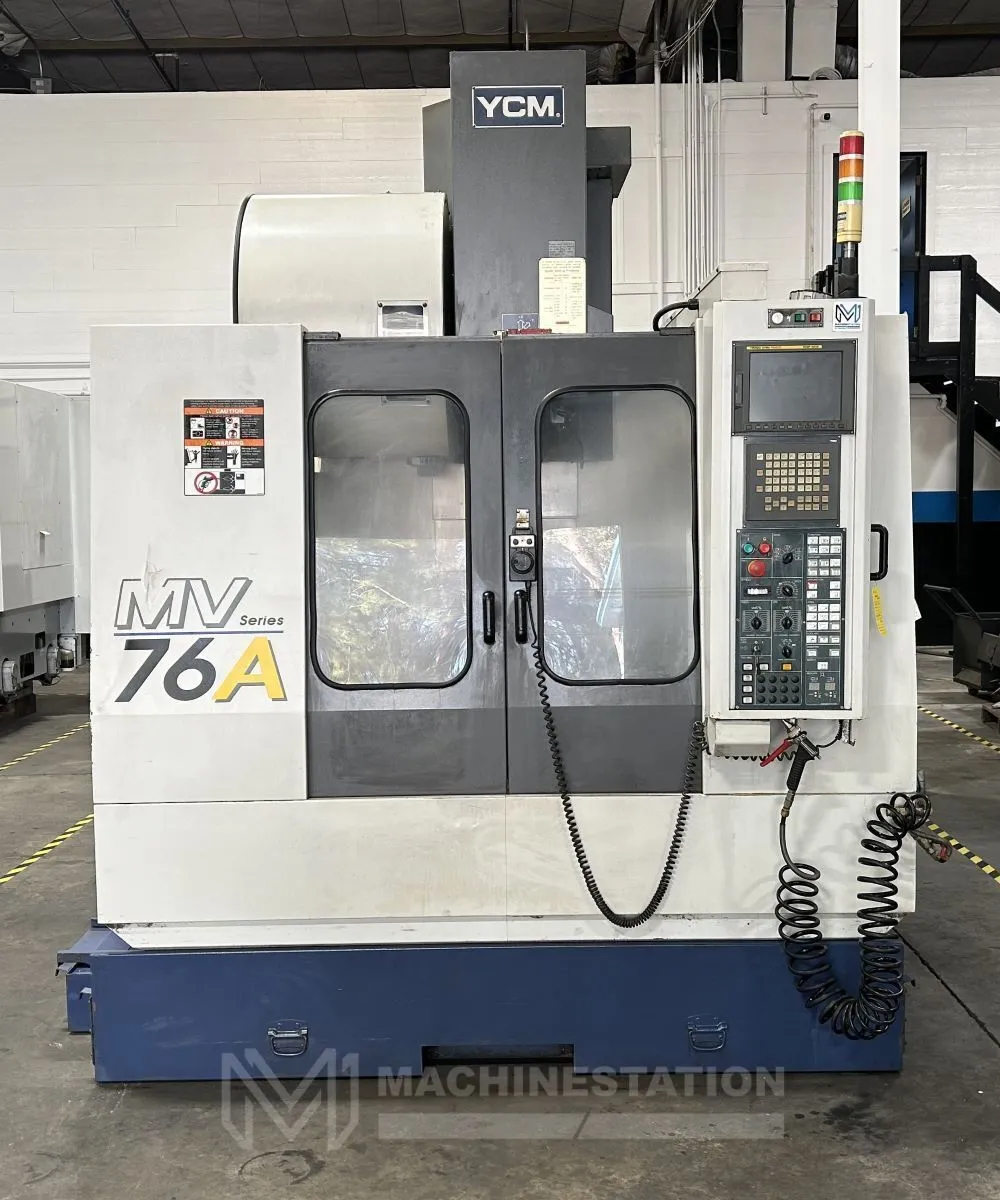

YCM MV-76A Features:
Fanuc MXP-200i CNC Control
9,226 Hours Cutting Time
Box Way Construction
8,000 RPM Gear Head Spindle
30 Station Automatic Tool Changer
PCMCIA Card Slot
MPG Control
Rigid Tapping
Spindle Orientation
Telescopic way covers
Coolant System
Specifications:
Travels:
X-Axis: 30.0″
Y-Axis: 20.08″
Z-Axis: 22.05″
Rapid Traverse Rates X, Y Axis: 1181 Inch Per Minute
Rapid Traverse Rates Z Axis: 945 Inch Per Minute
Cutting Feed Rates: 394 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 4.72″ – 26.77″
Table:
Length: 36″
Width: 22″
Number of Std T-Slots: 5
T-Slot Width: 5/8″
Max Weight on Table: 1102 Ibs
Spindle:
Spindle: Taper Size: 40
Speed Range: 0 – 8,000 RPM
Spindle Type: Gear Head
Spindle Power: 15 HP
Automatic Tool Changer:
Capacity: 30 Tools
Tool Weight: 15.4 lbs
Max Tool Dia: 3.54″
Max Tool Length: 11.8″
Tool Changing Time: 2.5 Seconds
General:
Air Required: 80 psi, 4 scfm
Power: 220v / 25 kva / 3-Phase
Overall Dimensions: 90″ x 84″ x 111″ High
Weight: 11,243 lbs
Coolant Tank
