| X Axis | 30" | 762 mm |
| Y Axis | 18.11" | 459.99 mm |
| Z Axis | 17.72" | 450.09 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 7,000 RPM | 7,000 RPM |
| # ATC | 20 | 20 |
| Taper | CAT-40 | CAT-40 |
| Table-W | 18.11" | 459.99 mm |
| Table-L | 39.37" | 1,000 mm |
| # Axis | 3 | 3 |
| Control | CNC (Okuma) | CNC (Okuma) |
| Dimensions | 90in x 104in x 106in High | 90in x 104in x 106in High |
| Weight | 12125 lbs | 12125 lbs |

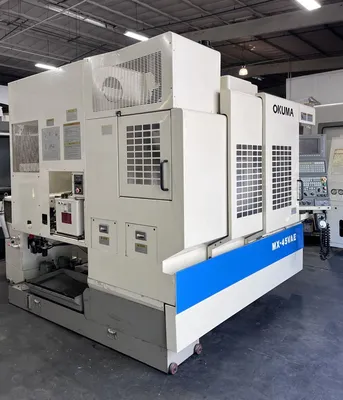

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
Features:
Okuma OSP7000M Series CNC Control
Y Axis Travelling Column
20 Station Automatic tool changer
7,000 RPM Spindle
40 Taper Spindle
RS-232 Port
MPG Handwheel Control
Rigid Tapping
Coolant Tank
Lubrication System
Machine has Used For Only Prototype Parts
Machine Comes with Original Paint
Travels:
X-Axis: 30.00″
Y-Axis: 18.11″
Z-Axis: 17.72″
Spindle Nose to Table (Min.- Max.): 6.29″ – 24.01″
Rapid Traverse Rates X, Y Axis: 1181″ Per Minute
Rapid Traverse Rates Z Axis: 787″ Per Minute
Cutting Feed Rates: 394″ Per Minute
Table:
Length: 39.37″
Width: 18.11″
Number of Std T-Slots: 3
T-Slot Width: 5/8″
Max Weight on Table: 1102 lbs
Spindle:
Spindle: Taper Size: CAT-40
Speed Range: 7,000 RPM
Spindle Power: 15 HP
Automatic Tool Changer:
Capacity: 20 Station Side Mounted
Tool Weight: 17.6 lbs
Max Tool Dia: 3.95″
Max Tool Length: 9.84″
General:
Air Required: 80 psi, 4 scfm
Power: 220v / 3-Phase / 22 kva
Overall Dimensions: 90″ x 104″ x 106″ High
Weight: 12,125 lbs
Touch Probe
Spindle Chiller Unit
(2) Tool Holders
Levelling Pads
