| X | 27.56" | 700.02 mm |
| Y | 20.47" | 519.94 mm |
| Z | 18.9" | 480.06 mm |
| # Axis | 5 | 5 |
| Power | 30 hp | 22.4 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 30 | 30 |
| Taper | 40 | 40 |
| Control | CNC (Fanuc 31i-B5) | CNC (Fanuc 31i-B5) |
| Dimensions | 103″ X 98″ X 120″ High Approx. | 103″ X 98″ X 120″ High Approx. |
| Weight | 13,690 lbs Approx. | 13,690 lbs Approx. |
*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
Features:

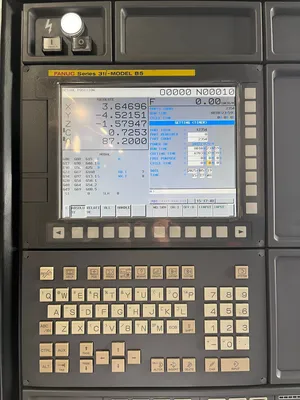

Fanuc 31i-B5 Series CNC Control
6,783 Hours Cutting Time
Simultaneous 5-Axis Cutting
NC Programmable Swiveling Trunnion Table 14.96” Diameter
12,000 RPM High Precision Spindle
30 Station Automatic Tool Changer
USB, PCMCIA Ports
Spindle Orientation
Rigid Tapping
Absolute Incremental Programming
Fast Rapid Traverse Rate
Travels:
X Axis: 27.56″
Y Axis: 20.47″
Z Axis: 18.90″
A Axis: 150° (+30°/– 120°) ( Table Tilt )
C Axis: 360° ( Table Rotate )
Rapid Traverse Rates X & Y Axis: 1417 Inch Per Minute
Rapid Traverse Rates Z Axis: 944 Inch Per Minute
Cutting Feed Rates: 393 Inch Per Minute
Table:
Table Diameter: 14.96″
T-Slots: 0.47″ Radial
Max Weight on Table: 441 lbs
Spindle:
Taper Size: 40
Speed Range: 12,000 RPM
Spindle Power: 30 HP
Automatic Tool Changer:
Capacity: 30 Tools
Taper: 40
Max Tool Size: 3″ X 11.2″
Max Tool Weight: 13.2 lbs.
Tool Change Time: 5.5 Second
General:
Air Required: 80 psi 4 scfm
Power: 200v - 220v / 50Hz/60Hz / 3-Phase / 40kva
Overall Dimensions: 103″ X 98″ X 120″ High Approx.
Weight: 13,690 lbs Approx.
Through Spindle Coolant
Renishaw Probing System (Probe Included)
Tool Presetter
Spindle Chiller
Chip Conveyor
Hand Wheel MPG Control
Work light
