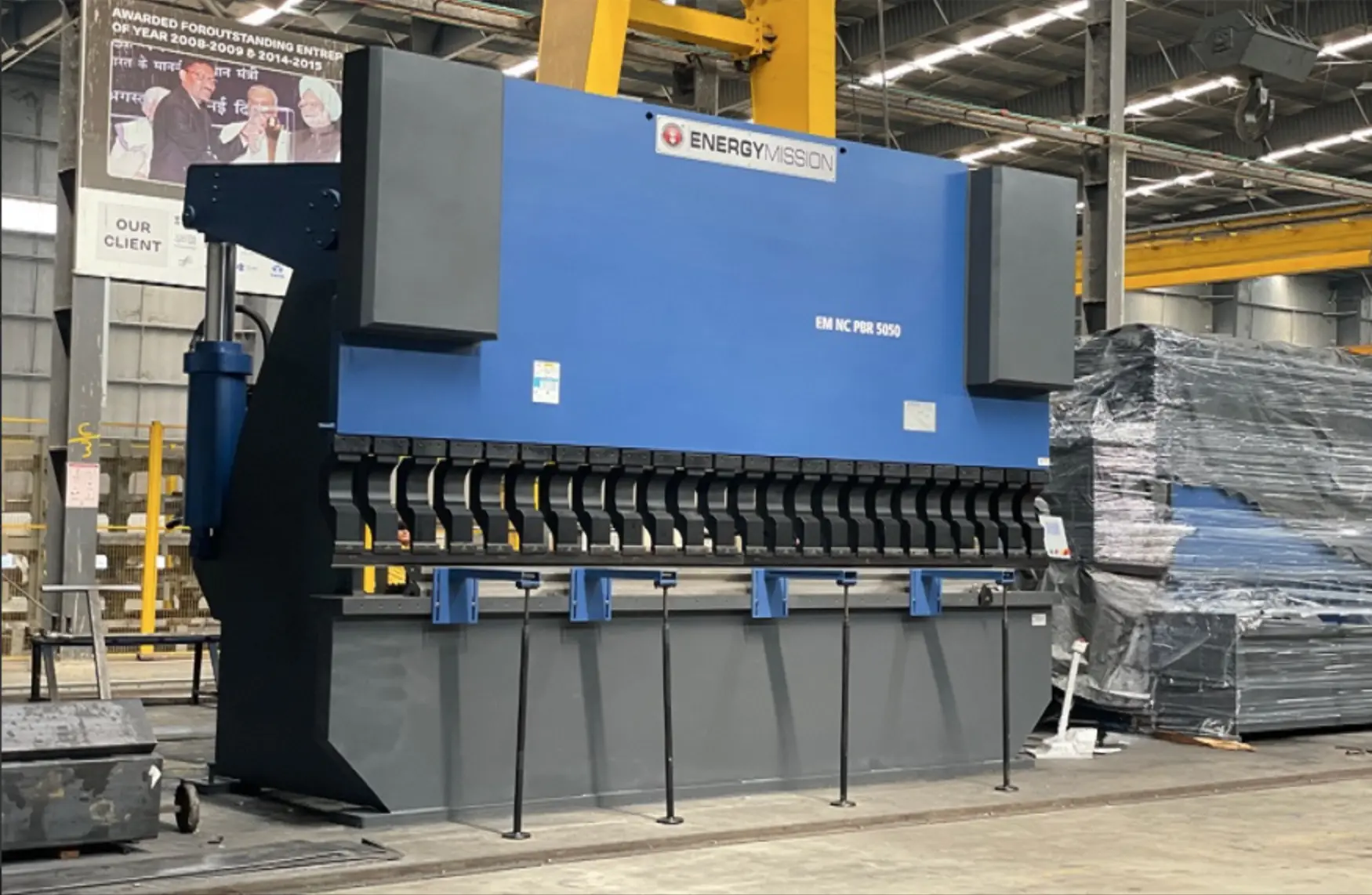

HYDRAULIC
PRESS BRAKE
RANGE / LENGTH
30 MT to 600 MT
1250 mm to 8000 mm
SALIENT FEATURES
- The stable robust welded steel Frame made of ultrasonically and tensile tested IS 2062 plate as per guidelines of IMTMA standards
- Fast approach & fast return speed to save cycle time, slow pressing speed for better stroke control & bending accuracy, ensures high productivity
- Repeatability for ram position ± 0.05mm
- Compact cylinders & low pressure system due to rear cylinders. Also it gives better rigidity & load carrying capacity against fatigue failure
- Positive synchronisation of cylinders with welded torque tube gives better bending accuracy on both ends
- Moving work station with manual, single cycle & automatic mode for easy operation with emergency stop button
- NC upgradation possible on site
- All electrical & hydraulic component from reputed make
- Hydraulic Cylinders made from seamless honed tube, hardened & grounded chrome plated piston rod fitted with twin type zero leak PU Seals
- Suitable for upgradation with special optional features
| Tonnage | 500 T | 453.593 t |
| Type | HYD | HYD |
| Table Length | 6,000 mm | 236.22" |
| Bending Length | 10 mm | 0.3937" |
| Table Width | 300 mm | 11.811" |
| Clear Pass | 5,100 mm | 200.79" |
| Ram Stroke | 250 mm | 9.8425" |
| Open Height | 500 mm | 19.685" |
| Throat Depth | 350 mm | 13.78" |
| Approach/Pressing/Return Speed | 25-5-30 mm/sec | 25-5-30 mm/sec |
| Power | 40 hp | |
| Dimensions L x W x H | 6350x2500x4250 mm | 6350x2500x4250 mm |
| Weight | 34000 kg | 34000 kg |
